Restore a Cast Iron Radiator With Hammerite Smooth in 6 Steps for 5-Year Protection

Strip to a sound surface first

Old paint decides how long the new finish survives. Several accumulated layers on a cast iron radiator will show their cracks and ridges through fresh Hammerite Smooth, and any loose patch underneath gives the new film a weak base. Removal is the necessary first stage.

On a column radiator with deep fluting, a heat gun set around 400 to 450 degrees Celsius softens old paint faster than chemical stripper reaches the recesses. Hold the nozzle 50 to 80mm from the iron, work in patches of about 200mm, and lift softened paint with a shavehook. The curved blade follows the column profile and gets into the hollows around the flutes.

Anything built before 1992 in the UK has a real chance of lead pigment in the lower coats. Keep dry sanding out of the job, and keep the heat gun below about 450 degrees Celsius, because lead fumes off above that range. Use P120 wet-and-dry paper with enough water to keep the surface genuinely wet. Put the residue into bags as it comes away. A sound substrate is visible when the iron has an even matte grey appearance and no flaking islands remain around the tappings.

What Hammerite Smooth will bond to

Hammerite Smooth is a solvent-based alkyd made for direct application to bare or rusted metal, so it appears often in radiator restoration discussions. It does not need a separate primer on suitable metal. The Smooth version gives a gloss-leaning finish. The Hammered version hides surface defects, although on a fine column section it can look industrial.

The direct-to-rust claim has limits. The paint bonds to firm surface oxidation and clean metal. Grease, loose scale, and old gloss that still has a sheen will stop proper adhesion.

A stripped radiator often ends up as a mixture of bare iron and stubborn old paint islands. Key those islands with P240 until the shine has gone. If the new coat sits on glossy old paint, it inherits the adhesion of that older film, which may be poor after 70 years.

White spirit is the thinner and brush cleaner for this solvent alkyd. Water-based cleaners are the wrong choice here. Coverage is roughly 5 to 7 square metres per litre per coat on smooth metal. Deeply fluted columns need extra paint because their real surface area is much larger than the visible footprint suggests.

Degrease before painting

Wipe the whole radiator with white spirit on a lint-free cloth, changing the cloth as it greys. Let the solvent flash off for ten minutes before any paint goes on.

Six steps and the timing that keeps the film flat

Step one is isolation and protection. Turn the radiator off at both valves and let it drop to ambient temperature. Hammerite skins unevenly on a warm surface, and the film can trap solvent. Mask the valves and spread dust sheets because heat-gun scrapings travel farther than expected.

Step two is stripping. Use the heat-gun method on small areas, keep the temperature within the safe working range described above, and clear softened paint with the shavehook. Work steadily around columns, tappings, and valve collars.

Step three is wet abrasion and feathering. Any remaining paint edge needs a smooth transition into the bare iron. A hard 200-micron edge of old paint will still read as a ridge through two thin coats of new material.

Step four is degreasing. People skip it because the iron appears clean after abrasion. It is still carrying fines from the wet-and-dry paper, and skin oils bind to bare iron within minutes of handling.

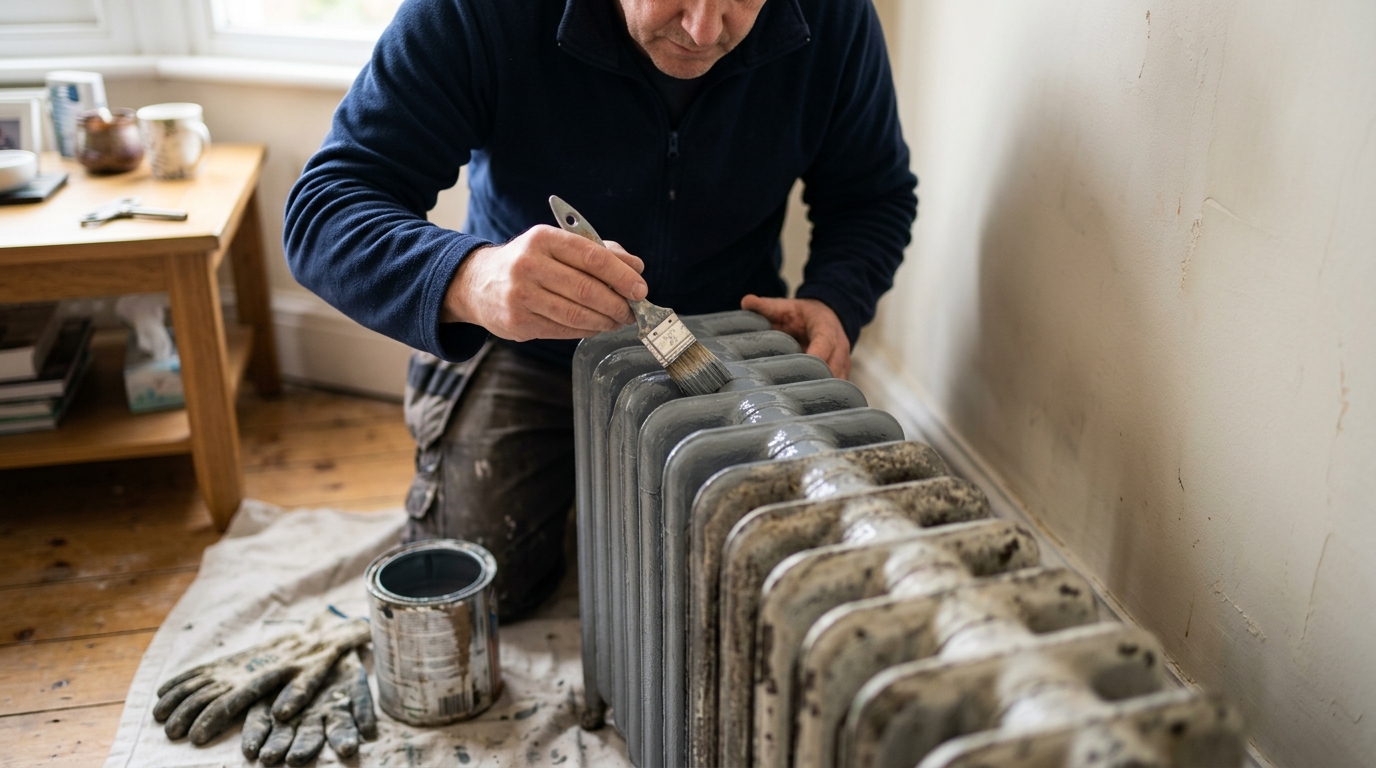

Step five is the first coat. Decant paint into a kettle, since the tin forms an oxidised skin each time it is opened. Use a 25 to 38mm synthetic-filament brush for the columns and a smaller artist-grade brush around the tappings and valve collars.

Lay the first coat thin. Hammerite Smooth runs and sags when it is loaded heavily, and a sag on a vertical column becomes permanent once cured. The first pass may look patchy. That is acceptable because it establishes the first continuous film.

Step six is the second coat, applied within the correct recoat window. Hammerite Smooth guidance is generally within about four hours or after about a week. The middle period is where wrinkling occurs. At hour six, the first coat may feel touch-dry while still being uncured underneath. Solvent in the second coat softens it, and the layers distort.

Recoat inside four hours while the first coat is still chemically open, or leave the full seven days so it cures hard. Two coats at about 25 microns each give roughly 50 microns of dry film, the band behind the five-year protection figure. A single loaded coat cures slower, traps solvent, and chips at the edges within a season.

Solvent alkyds give off considerable vapour, and a closed room with a radiator-sized painted surface saturates fast. Open two windows for cross-flow and keep them open throughout cure.

Heat after curing

The finish needs the radiator cold while it cures, then it tolerates heat. Most alkyds handle the 60 to 75 degree flow temperature of a domestic heating system without severe yellowing, although pure brilliant whites drift toward cream over a few heating seasons faster than mid and dark tones. Graphite, anthracite, and heritage green hide that colour shift; stark white makes it obvious.

Leave the system off for the full cure window specified on the tin, typically seven days for full hardness even though the surface becomes touch-dry in a few hours. Firing the radiator on day two bakes uncured film and drives trapped solvent out through the surface. The result is micro-pinholes, which become rust initiation points within a year.

The five-year protection figure assumes the film cured cold and undisturbed. If the first week is rushed, the first edge chips tend to appear after two to three years, especially around the top tappings where thermal cycling is harshest.

Coverage on a four-column radiator

Take a four-column cast iron radiator, 600mm tall by 1000mm wide, with about 18 sections. Its visible footprint is 0.6 square metres. The four-column profile multiplies the real surface area by roughly four, so the paintable metal is about 2.4 square metres per face and close to 4.8 square metres once both sides and the ends are counted.

At 6 square metres per litre per coat, two coats need about 1.6 litres of coverage. A 750ml tin of Hammerite Smooth covers one coat on this radiator with a little spare. Two 750ml tins handle the job with allowance for paint left in the kettle and brush-out at the end.

Add a couple of litres of white spirit for degreasing and cleanup, a heat gun if you do not own one, a pack of shavehooks, and P120 to P240 wet-and-dry paper. Those consumables sit in a modest range beside the cost of replacing a period radiator. Reclaimed cast iron columns of this size run into the low hundreds before refurbishment.

Estimating from the visible footprint leads to buying about half the paint required. Running out mid-second-coat can leave a faint tonal band where one tin ends and another begins. Purchase paint from the actual surface area of the columns, ends, and backs.

Where wear appears first

The top tappings and valve collars cycle hottest and coldest as the system fires and cools, so the film stresses there first. Five years is a realistic expectation for the flatter column faces, while collars often need earlier touch-up. That uneven wear is ordinary maintenance, even when the column faces still look freshly painted.
