Ikea Metod Frame Upgraded with Grass Nova Pro Scala for a 30-Kilogram Drawer

Ikea Metod frames used for this sort of conversion come in the familiar 37 cm and 60 cm depths, with the 37 cm wall-cabinet units sitting in the same family of carcasses. Grass Nova Pro Scala runners are sold in nominal lengths from 270 mm through 550 mm, stepping by 30 mm. In a 560 mm deep Metod base carcass, the 500 mm Grass runner is the usual starting point because it fits with spare clearance behind it.

Grass rates the standard Nova Pro Scala runner at 30 kg dynamic load per pair. The heavy-duty Tipmatic version is rated at 70 kg. Those figures matter because Ikea Maximera runners are specified by Ikea for ordinary domestic drawer loads, and the internal test figure is well below the Grass number. A tall pull-out loaded with bottles and tins can reach the Maximera limit quickly. With the Nova Pro Scala, the extra headroom reduces the deflection that shows up as a heavy drawer dropping when it reaches full extension.

Why the hole grid fights you

The first problem appears before the drawer box is even built. Metod carcasses use Ikea’s 32 mm cabinet drilling grid, with the front vertical row set back from the leading edge of the side panel. Grass uses its own front bracket position and a rear hook. At the back, the runner can land in a system-32 hole or take a direct screw into the side panel, depending on where the hardware falls.

The two layouts do not line up cleanly. If the Grass front bracket is fixed to the nearest convenient Metod hole, the drawer front normally ends up proud by about 4 to 6 mm. That small error is visible across a run of fronts, and the soft-close adjustment on an adjacent door hinge will not hide the step.

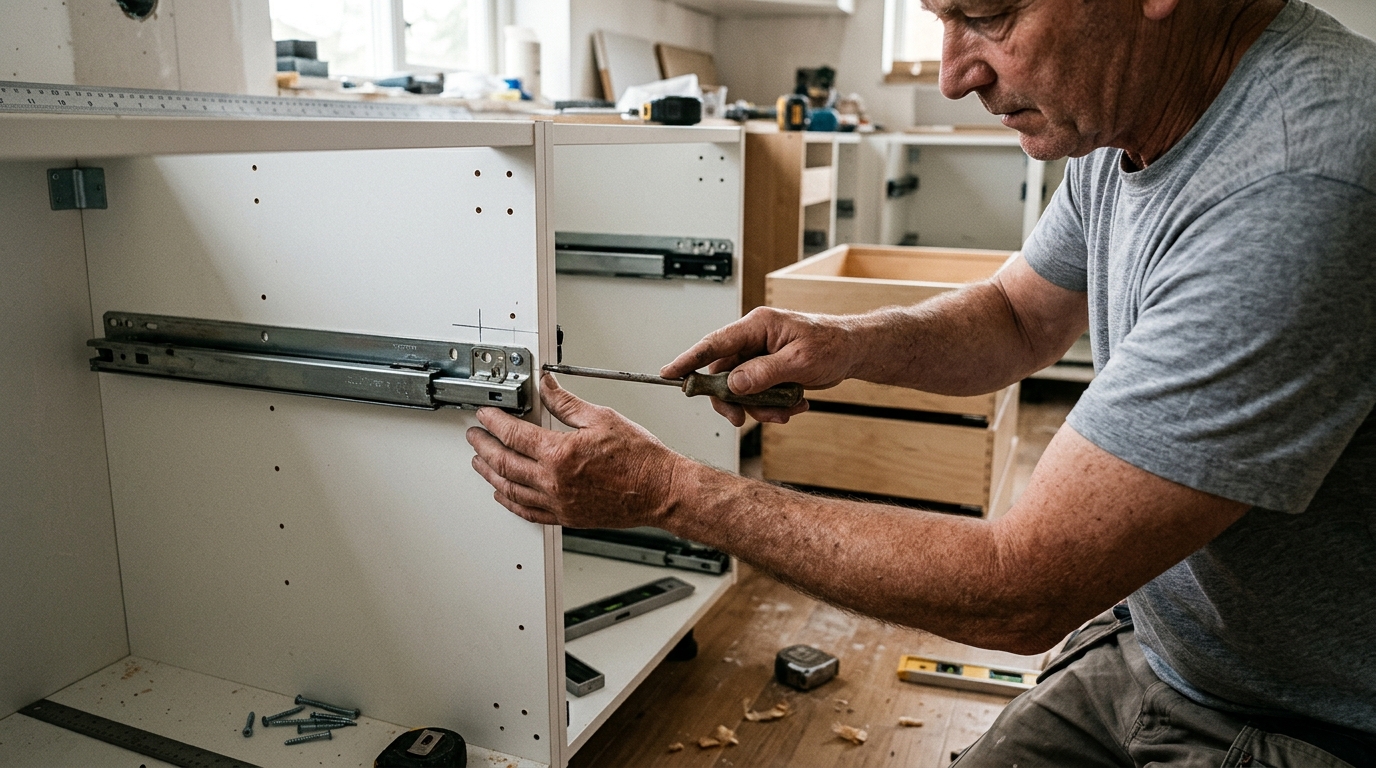

Fitters usually solve the front error with a spacer packer behind the Grass front bracket. A strip of 3 mm or 6 mm MDF is enough in many builds, though the correct thickness comes from the datum Grass gives for the runner. That datum is the distance from the cabinet front edge to the runner front fixing. The drawer front depends on that offset, so the packer is doing more than filling a gap; it is moving the runner onto the correct reference line.

Once the front datum is set, the rear hook tends to fall close enough to an existing Metod hole to accept a 3.5 mm screw. That saves redrilling the whole side panel. A fresh carcass gives more freedom, since the runner can be laid out from scratch and the Ikea holes ignored.

On an assembled or already hung cabinet, drilling inside the box is awkward. Melamine also chips as the drill exits the face. A 3 mm brad point bit, run slowly, leaves a cleaner edge than a general-purpose twist bit.

Setting the runner height

Drawer height in a Metod cabinet is controlled by the front size and the runner position. Nova Pro Scala drawer sides come in nominal heights, with the runner sitting at the base of the drawer box. When the aim is to keep an existing Metod drawer front, the useful measurement is from the cabinet floor to the underside of the old Maximera runner. Transfer that height to the Grass front bracket before marking the holes.

Small height errors show up at the front. A 2 mm mistake at the runner can be amplified once the drawer front is clipped on, so the transfer measurement deserves a second check before drilling. The vertical adjustment cam on the Grass front bracket gives roughly plus or minus 2 mm of tilt correction after the drawer is loaded. That is enough for the small settling that appears when 20 kg of contents goes into the box. It cannot rescue a runner fixed 8 mm too high, because the fixing hole sets the basic height and the cam only trims the finished position.

The side clearance number

Grass specifies 12.5 mm between the drawer box side and the inside face of the cabinet for the standard Nova Pro Scala runner. A 60 cm Metod cabinet provides that space when the drawer box is cut to the Grass drawer width; an Ikea-width drawer box will bind on the runner.

Reusing the Metod suspension and the front line

The Metod suspension brackets carry the cabinet on the wall rail, so a heavier pull-out changes the way the loaded cabinet behaves. With a single drawer fully extended, the centre of mass moves forward and the upper rear suspension point takes the reaction. For a base unit bolted to a masonry wall with the supplied fixings, a 30 kg Nova Pro Scala drawer remains inside the normal cabinet-and-contents envelope. Plasterboard with cavity fixings needs the full, open drawer considered as the controlling load case, because that is when the forward moment is greatest.

Front alignment across a Metod run still depends on a shared vertical datum. After the Grass runner is packed to the correct front offset, its front should sit within about 2 mm of the neighbouring Ikea drawer fronts, which is usually inside the tolerance the eye accepts. A nearby door on a Blum or Ikea Utrusta hinge is adjusted separately at the hinge cam. The drawer and the door do not share an adjustment, so the drawer line is set first and the door is brought to it afterward.

A tall larder pull-out is the clearest use for the swap. The larder carcass may be a full-height 200 cm Metod frame, and a single internal pull-out can hold 25 kg of dry goods. Maximera is not specified for that column height with that load. The 30 kg Nova Pro Scala pair covers the usual version of that build, while the 70 kg Tipmatic runner is the heavier option for the tallest larders.

Where Aventos fits in the same kitchen

Blum Aventos hardware is the comparable upgrade in wall cabinets, although it solves a different movement problem. Aventos lifts a flap front upward on its own bracket pattern in a Metod wall carcass, while Nova Pro Scala handles a drawer moving horizontally below. A finished Metod kitchen can use both systems in the same run, with Aventos overhead and the Grass drawer hardware in the base units.

When the melamine is already damaged

Old screw positions can be poor fixing points. If a previous runner has chipped the melamine or crushed the edge of the board, a new pilot hole beside it may wander into broken material. The repair is a two-part filler packed into the damaged area, sanded flush after curing, then redrilled.

For a runner fixing, the filler needs to be a structural epoxy type. Cosmetic wax sticks are useful for hiding surface marks, but a 3.5 mm screw in a load-bearing runner position can pull out of wax under a loaded drawer. A cured structural repair gives the screw a sounder face, close to what the original panel offered before the damage.

Wardrobe fittings use the same front-offset logic when a Grass runner is fitted into a Pax or a Metod-based wardrobe drawer. Loads are usually lower in wardrobe use, so the standard 30 kg runner is comfortably inside its rating. The packing behind the front bracket remains the important carry-over from the kitchen version, and the 12.5 mm side clearance stays the same whatever the drawer holds.

The front datum controls the whole fit

The front datum offset is the measurement that sets up the rest of the job. It runs from the cabinet front edge to the runner front fixing, and it determines the packer thickness behind the Grass bracket. With that offset in the right place, the drawer front lands on the cabinet line and the rear hook usually has a usable fixing nearby. If the offset is missed, later tweaks at the cam or hinge only chase an error already built into the runner position.

The published runner load tells only the slide capacity. In a tall plasterboard larder, the uncomfortable detail is that the most severe moment occurs when the drawer is open and full, while the runner itself may still be well within its rating. That leaves the wall fixing as the part of the assembly with no answer printed on the drawer hardware.
