4 Litres of Paint Saved by a Wagner FLEXiO 700 on a 25 Square Metre Hallway

The 4 litre figure, broken down

A 25 square metre hallway taking two coats of emulsion gives 50 square metres of coat passes before the deductions for doors and skirting are considered. Standard vinyl matt emulsion usually claims about 12 to 14 square metres per litre per coat on a sealed surface. On that arithmetic, the amount of usable paint sitting on the wall comes out near 3.6 to 4.2 litres.

Roller work on a hallway seldom lands exactly on that usable figure. A 9 inch roller carries paint in places that never become wall coverage: the well of the tray, the roller core, the sleeve after it is thrown away, and the drips caught by masking. Awkward angles and a stairwell add more stop-start handling. For that sort of roller job, decorators commonly allow 15 to 25 percent over the theoretical coverage, which moves the opened paint requirement toward 5 to 5.5 litres for the same two coats.

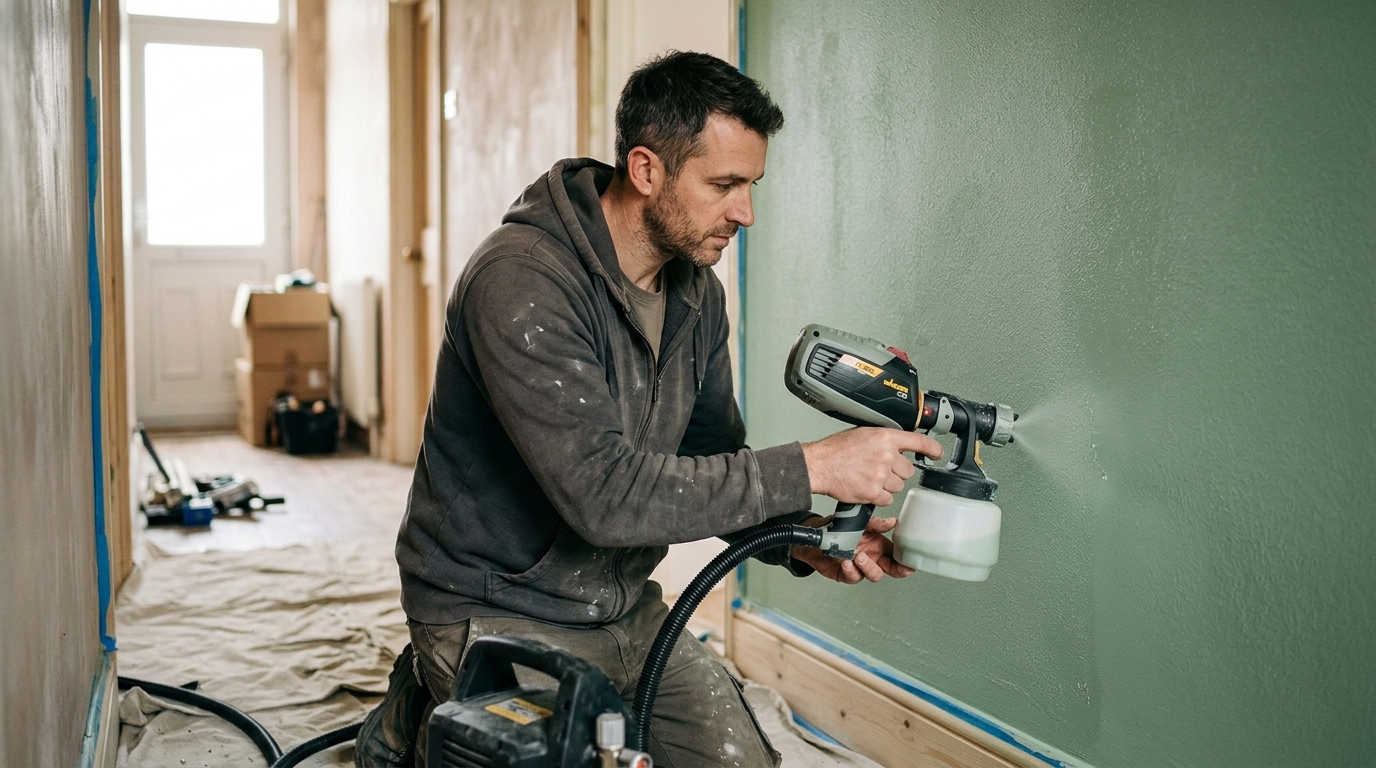

The Wagner FLEXiO 700 was used with the iSpray front end and thinned emulsion. In that setup the film went down finer and more evenly than the roller coat. Interior emulsion through an HVLP-style turbine has better transfer efficiency than tray-and-roller work, with overspray as the trade-off. On this hallway the spray figure sat around 1.5 to 1.8 litres per coat, or roughly 3 to 3.6 litres in total.

Set the spray total against a roller purchase of about 5 litres and the headline saving reaches 4 litres, once the sealed tin is counted as unopened stock. Two things produce that gap: the thinner wet film the sprayer lays on the surface, and the paint the roller method would have locked up in an opened container that never came back off the wall.

Mist coat on fresh plaster

Fresh skim is porous, and it pulls water out of full-strength emulsion before the paint film can bond properly. That is why the first coat on bare plaster is a mist coat rather than neat paint.

The usual working mix is 70 percent emulsion to 30 percent water. On especially thirsty plaster it may shift to 60:40. Contract matt is the right emulsion for this stage; vinyl silk can seal the surface with its resins and later cause the topcoats to peel.

Through the FLEXiO 700, a 60:40 mist coat sprayed cleanly through the iSpray nozzle on a low air setting. The turbine coped with thinned emulsion at that viscosity without the spitting that a compressor gun can give. For a 25 square metre hallway of bare plaster, the mixed mist coat came in at roughly 1 to 1.3 litres, with about 0.7 litres of that being actual emulsion.

That mist coat sits outside the 4 litre topcoat saving entirely. Bare plaster needs it whether the later coats are rolled or sprayed.

Drying time matters before that coat goes near the wall. A re-skimmed hallway can take several days to a couple of weeks to dry, depending on room temperature and the thickness of the skim. If the plaster still looks dark and patchy, sealing moisture under a mist coat can leave the paint flaking within months.

Skirting, tape and spray edges

Before the FLEXiO 700 is pointed at the wall, the skirting boards need protection. Its overspray forms a soft edge beyond the aimed band, so skirting, architraves, sockets and the stair handrail were covered with FrogTape or masking film before the first pass. Spray equipment shifts the graft earlier in the day: instead of forming the paint line slowly by hand along every join, most of the effort goes into wrapping the trim and fittings before a single trigger pull.

A brushed cut line still gives the cleanest junction where wall meets timber. A 2 inch angled sash brush from Purdy or Hamilton, run along the top of the skirting, gives a crisper edge than tape on some textured walls, where paint can creep underneath. If the skirting is gloss or satinwood in a different colour from the wall, it is usually painted after the emulsion has cured. Any wall overspray on the timber then disappears under the trim coat.

The sequence on this hallway was straightforward: mist coat sprayed first, two emulsion coats sprayed with the skirting masked, masking removed, then the skirting cut in and glossed by brush. Painting the skirting first would have meant taping over cured gloss and risking lifted paint when the tape came away.

Overspray in a hallway

The FLEXiO 700 puts some material into the air. In a hallway, that mist settles on floors, banisters and anything left uncovered because the space has doorways and traffic routes running through it. Full floor dust sheets and a mask for the operator were part of the job at this air setting.

Reading the tin coverage claim

Wagner coverage figures for the FLEXiO range assume thinned material and a continuous surface. A real hallway gives the gun a less tidy run. Corners, reveals and a stairwell wall with a raking soffit slow the pass and put more paint into certain areas, so the per-litre result drops below a flat-wall claim.

In this worked case, the topcoat emulsion was thinned by about 10 percent so it would spray cleanly. The wall area was 25 square metres net of door openings, and it received two coats.

Coat one used close to 1.6 litres. The plaster had been sealed, although it still pulled slightly. Coat two went on over a surface that was no longer absorbing in the same way, so it came in nearer 1.4 litres.

The total on the wall was 3 litres. The roller comparison, using the same two coats and adding 20 percent for tray-and-sleeve waste, would have opened a 5 litre tin and left under a litre in it.

So the saving is really two quantities living together. About 2 litres was cut from the paint actually applied, thanks to the finer film. The other 2 litres stayed sealed and reusable, because the roller method would have opened a full 5 litre tin to reach the same finish. On the wall, the clue was plainer than the sums: one tin stayed shut through the second coat, and nothing had to be scraped out of a tray at the end of the day. Whether that untouched tin is worth keeping depends on how long the emulsion sits before the hallway wants a matching patch, and that is the part the coverage figures say nothing about.
