Waterlogged Lawn Drained with a French Drain and CED Stone Gravel Run

Standing water on a lawn after 24 hours of rain almost always traces to one of two conditions: a high water table, or a compacted clay horizon roughly 200mm to 400mm below the surface that the rain cannot pass through. A French drain addresses the second case directly. The trench intercepts subsurface flow, and the 20mm CED Stone angular gravel surrounding the perforated pipe gives that water a low-resistance path to an outfall. On a typical UK back garden of 60 to 100 square metres on London clay or Weald clay, a single run of 10m to 15m down the prevailing slope handles the bulk of the problem.

The fall is the variable that decides whether the whole installation works. A perforated land drain needs a minimum gradient of 1:80, which is 12.5mm of drop per linear metre. Anything shallower and the water sits in the pipe instead of running. A laser level or a simple line level with a 2m batten gives you the reading you need before any spoil comes out of the ground.

Where the water actually goes

The outfall decides the design before the trench does. A French drain with no destination is a soakaway in disguise, and on clay a soakaway fills and stops working. Three legitimate terminations exist for domestic work: a soakaway crate pit dug into a more permeable subsoil layer, a connection to a surface-water drain (never a foul drain, and never a combined sewer without permission), or a ditch or watercourse at the boundary.

The soakaway crate, such as a Polypipe Polystorm unit, needs to sit in ground that drains. A percolation test settles this. Dig a 300mm cube pit, fill it with water, let it drain once to saturate the sides, then fill again and time the drop. If the water falls slower than about 15mm per hour, the ground will not take a soakaway and the run must terminate elsewhere. This single test prevents the most common total failure: a beautifully built drain feeding a pit that holds water like a bath.

For a connection to an existing surface-water gully, a 110mm solid pipe carries the collected water the last stretch to the gully, with the perforated section confined to the lawn run itself. The transition from perforated to solid happens at the point where you no longer want water entering or leaving the pipe.

The geotextile decision that prevents silt blinding

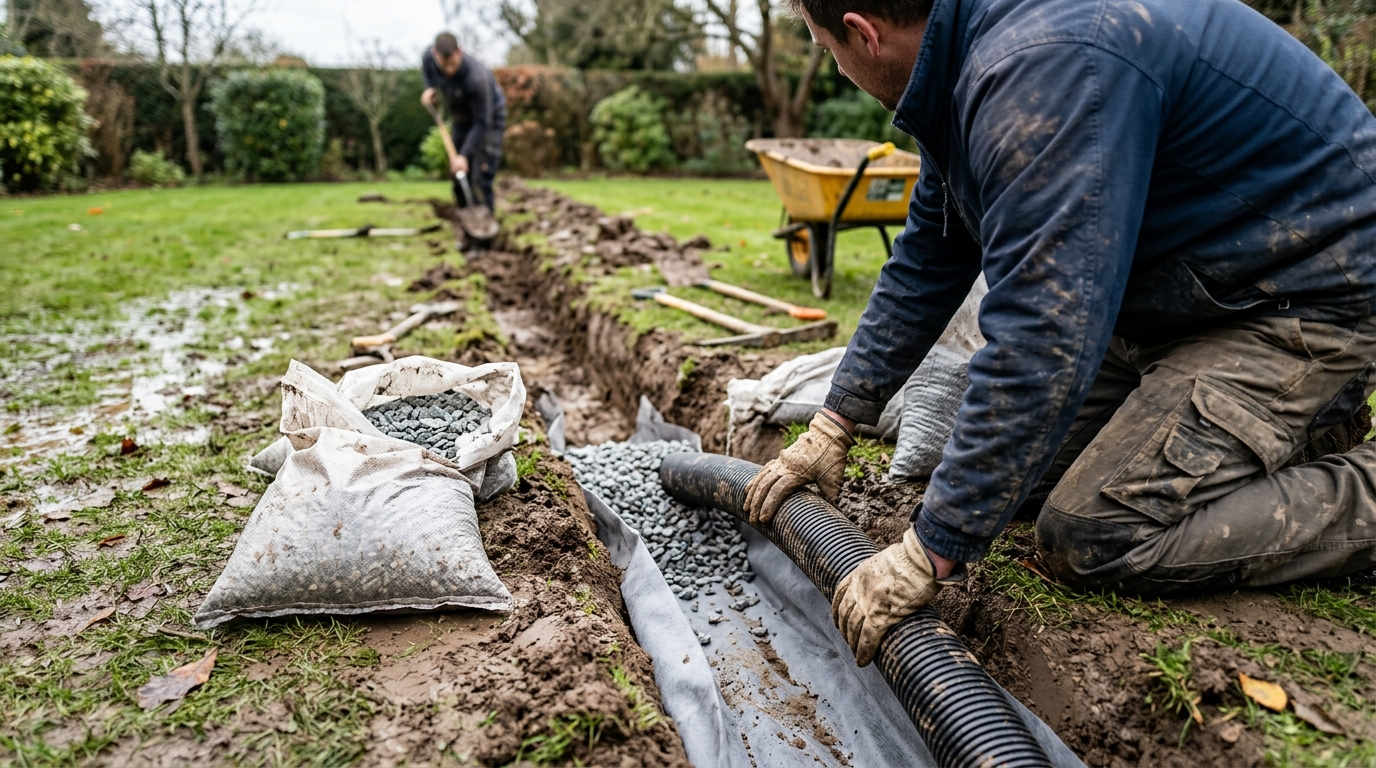

Fine clay and silt particles migrate into clean gravel over a few seasons and clog the voids, at which point the drain slows to a crawl. A non-woven geotextile membrane, Terram 1000 or equivalent at around 140g per square metre, wrapped around the gravel envelope stops this. Lay the membrane in the trench first, overlapping the trench walls, place the gravel and pipe, then fold the membrane over the top before the final backfill.

There is one nuance worth getting right. Wrap the gravel, not the pipe. A membrane sock pulled tight against a perforated pipe blinds far faster than a membrane that wraps a 100mm to 150mm gravel envelope, because the gravel itself acts as the primary filter and the membrane only catches what gets past it. CED Stone supply 20mm clean angular Scottish granite or limestone graded specifically for drainage, which holds far more void space than rounded pea shingle and resists the locking-up that smaller aggregate suffers under load.

A worked cost and volume example

Take a 12m run, 300mm wide, 500mm deep. The trench volume is 12 x 0.3 x 0.5, which equals 1.8 cubic metres. The pipe and a 50mm bedding layer occupy a small fraction, so gravel demand sits near 1.5 to 1.6 cubic metres. CED Stone 20mm gravel runs roughly £70 to £95 per bulk bag covering about 0.6 cubic metres, so figure three bulk bags, call it £240 to £285 delivered in much of England.

The perforated land drain at 80mm or 100mm diameter costs around £2.50 to £4 per metre, so £30 to £48 for the run. Terram 1000 at a 4.5m width, one roll, covers the lining with overlap and runs £40 to £70. Add a 110mm solid pipe length and a couple of fittings for the outfall, perhaps £25. Total materials land between £335 and £430 before hire. A mini-digger hired for a day runs £90 to £140 with collection, and it turns a two-day hand-dig in clay into a four-hour job. The labour-equivalent saving alone usually justifies the digger on any run past 8m.

Backfilling so the lawn does not telegraph the trench

The top 150mm is where most jobs look amateur a year later. If you backfill the entire trench with gravel to the surface, you get a visible gravel stripe across the lawn that the mower scalps and weeds colonise. The fix is to stop the gravel and membrane around 150mm below finished level, fold the membrane closed, then cap with the topsoil you set aside during excavation, lightly consolidated and seeded or turfed over.

Keep the excavated topsoil and subsoil in separate piles as you dig. Topsoil goes back on top; the clay subsoil is spoil you remove or use to build up a low spot elsewhere in the garden. Mixing the two and tipping it all back gives you a strip of poor-draining clay sitting directly over your new drain, which defeats the purpose at the surface. A 25mm to 50mm crown of topsoil over the trench line allows for settlement so the run does not sink into a visible channel after the first heavy rain.

Over compacted areas of the lawn that are not directly over the trench, hollow-tine aeration and a top dressing of sharp sand worked into the holes improves surface infiltration and feeds water toward the new drain instead of letting it pond. This pairs well with the subsurface work because the drain only helps water that reaches it.

When a single run is not enough

A herringbone layout collects from a wider area. Lateral drains feed into a central spine at 45 degrees, spaced 3m to 5m apart on heavy clay and up to 10m on lighter loam. This is the design for a lawn that ponds across its whole width, not just along one low edge.

The question the percolation test leaves open

The percolation result tells you whether a soakaway works today, in the subsoil you happened to dig into. It does not tell you what the layer 600mm further down does, and on stratified clay sites the band that takes water and the band that holds it can swap within half a metre of depth. A trial pit deeper than the planned drain, dug before committing the line, is the one piece of information that changes a herringbone layout from guesswork into a design, and it is the cheapest thing on the whole job to get wrong by skipping.
