Rickety Chair Frame Squared with 4 Bessey Cramps and Cascamite over a 24-Hour Cure

A chair that rocks on a flat floor has failed at one or more of its eight leg-to-rail joints. Before any cramp goes on, the failed joints have to come apart. Cascamite, a urea-formaldehyde powder adhesive sold in the UK since the 1930s and now marketed under the Polyvine and Humbrol lines, will not bond to a surface still coated with old animal glue or PVA. The disassembly is the part that decides whether the repair holds.

Reading the Frame Before Any Glue Comes Out

Set the chair on a surface you know is flat, such as a kitchen worktop or a sheet of 18mm MDF. Press each corner in turn. A joint that moves under hand pressure has failed. Mark it with masking tape. On a standard four-leg dining chair the side rails and the front and back rails meet the legs through mortise-and-tenon joints, and it is usually the back-leg-to-side-rail joint that goes first because that is where a sitter’s weight levers the frame.

Do not force a joint apart that is still sound. Working a tight tenon out of its mortise tears the long-grain fibres and leaves you gluing into damaged wood. Instead, inject warm water into the visible glue line with a syringe if the original adhesive is animal glue, which most pre-1950 British furniture used. Animal glue reverses with heat and moisture. PVA and Cascamite do not, and a joint set with either will need mechanical persuasion using a rubber mallet and a block to spread the blow.

Stripping the Old Glue From the Tenon

Once a joint is open you will see the tenon and the walls of the mortise. Both carry a skin of old adhesive. A cabinet scraper, held at roughly 70 degrees and drawn along the tenon cheek, lifts animal glue in ribbons without removing timber. The burr on a freshly turned scraper does the cutting, so run a burnisher along the edge before you start. For the mortise walls, where a flat scraper will not reach, a narrow chisel used bevel-down scrapes the inside faces.

The goal is bare, dry timber on both mating surfaces. Cascamite is gap-filling to a degree, but a joint that has lost its shoulder fit will still rack. If the tenon has shrunk and sits loose in the mortise, glue a veneer slip to one cheek to restore the interference fit before final assembly. Let that sub-repair cure fully first, because clamping a still-wet packing piece under a fresh glue-up gives you two variables curing at once and no way to correct either.

Mixing Cascamite and Setting the Four Cramps

Cascamite is supplied as a powder. Mix it 2 parts powder to 1 part cold water by volume in a clean container, stir to a smooth double-cream consistency, and let it stand for two to three minutes so the resin hydrates fully before use. Pot life at 20 degrees Celsius is roughly two hours, which is generous, but the powder-water ratio is not negotiable: too much water and the cured bond is brittle and chalky.

Brush the mix onto both the tenon and the mortise walls, assemble the frame, and check for square before any cramp goes tight. Measure the two diagonals of the seat opening with a folding rule or a tape. Equal diagonals mean a square frame. If they differ, the frame is racked and no amount of clamping pressure fixes a joint that has been forced out of true. Adjust by hand until the diagonals match to within a millimetre or two.

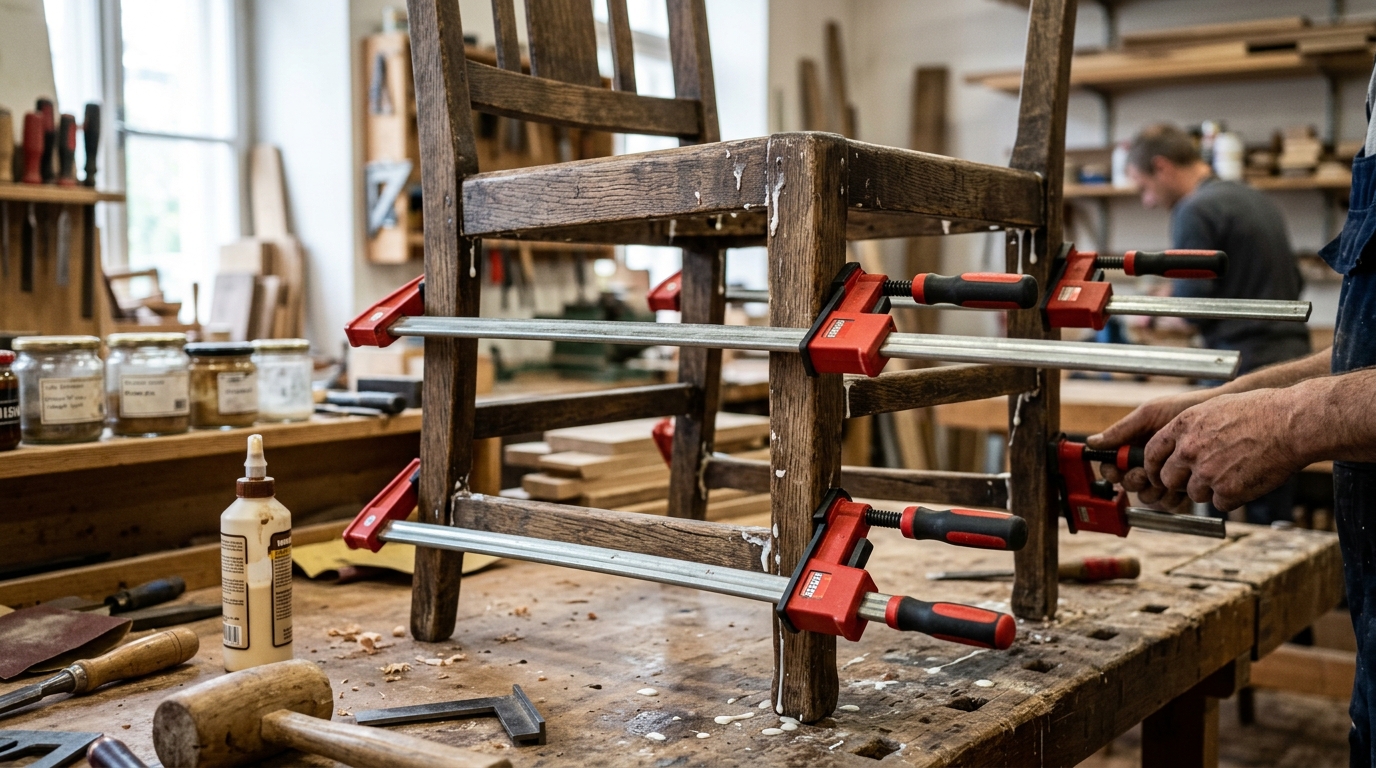

Now the cramps. Four Bessey sash cramps, two running front-to-back across the side rails and two running side-to-side across the front and back rails, apply even pressure to close all four joints at once. Tighten each cramp only until glue beads along the joint line, then stop. Over-tightening starves the joint of adhesive and can bow a rail. Slip an offcut between each cramp jaw and the leg to spread the load and avoid bruising the timber. Re-check the diagonals after the cramps are on, because tightening can pull a square frame out of true. Wipe the squeezed-out Cascamite with a barely damp cloth before it skins, since cured urea-formaldehyde is hard enough to chip a chisel edge.

Leave the assembly cramped for a full 24 hours. Cascamite reaches handling strength faster than that in a warm room, but full cure at the resin’s rated strength needs the time and a temperature above 10 degrees Celsius. A cold garage in winter will leave the bond under-cured and weak.

The Worm Holes You Find Under the Seat

Removing a drop-in seat often exposes small round exit holes, 1 to 2mm across, in the rails. Those are furniture beetle flight holes, the sign that larvae have already left. Fresh, active infestation shows pale bore dust beneath the holes.

Treating the Flight Holes and Checking for Active Beetle

The exit holes themselves are old damage. The question is whether the beetle is still present. Tap the wood over a sheet of dark paper and look for frass, the fine gritty dust the larvae push out. Fresh frass is pale and sharp under a hand lens; old frass is grey and clumped. If you find fresh dust, treat the timber with a permethrin-based woodworm fluid, applying it to bare wood and injecting a little into open flight holes with the nozzle most treatment bottles supply.

Holes in a load-bearing rail are a structural matter, not a cosmetic one. Common furniture beetle rarely destroys hardwood chair rails outright, but a rail riddled with galleries has lost cross-section and may fail under a heavier sitter. Probe suspect timber with an awl. If the point sinks in with light pressure, the wood is compromised and the rail needs splicing or replacing before the chair goes back into use. Sound timber that carries only a scatter of old exit holes can be filled with a coloured wax stick after treatment, matched to the surrounding tone.

Bringing the Surface Back Without Stripping It

Many repairs do not need the finish taken back to bare wood. A chair with a sound but dull French polish responds to a light rubber charged with fresh polish and a trace of white spirit as lubricant, worked in long passes along the grain to melt the old shellac into the new and lift the surface. This reamalgamation avoids the labour and colour loss of a full strip.

Where the top surface is oiled rather than polished, Osmo Polyx-Oil goes on thin. The most common error is applying it like paint. A microfibre cloth or a fine pad spreads a coat so sparse it looks insufficient, then any surplus is wiped off within the working time on the tin. Two thin coats with a light denib between them beat one heavy coat that stays tacky for days.

For a wax finish over shellac or bare timber, Liberon Black Bison paste wax applied with 0000 wire wool along the grain fills the surface and burnishes to a soft sheen once buffed with a clean cloth. The wax does not build a protective film the way oil or polish does, so it suits pieces that get handled more than they get wet.

Blistered veneer on a seat rail or a chair back is a separate job. A blister means the old glue beneath has let go. If the veneer is thin and the substrate is a hide-glue original, a warm iron over a damp cloth can soften the glue and let the blister be pressed flat under a caul and a cramp. Where the glue has failed completely, slit the blister along the grain with a scalpel, work fresh adhesive under the lifted edge with a thin palette knife, and cramp through a piece of wax paper so the caul does not stick.

What the 24-hour cure does not tell you is how the repaired joint behaves under a decade of load. A frame squared today can still creep if the tenon fit was marginal and the room runs dry. Whether a veneer patch on a rail feels its bond as the timber moves through the seasons is the part no cramp and no cure schedule can settle in advance.
