Mount a Gubi Multi-Lite Sconce Beside a Linen Headboard in 6 Steps

Set the throw distance first

The Multi-Lite wall lamp pivots on two shades, and the lower opal cone sets the place where light falls. Measured from the wall plate, the shade aperture sits around 30 to 33 cm out, depending on the cone angle. Set that projection as the first number, because it governs the mounting height. For a reading pool on the pillow, place the aperture roughly 35 to 40 cm above the top of the headboard, with the cone tilted down. A low plate puts the beam below the usual book position and spreads it across the bedding.

The second number is headboard height. A standard linen-upholstered headboard on a UK double frame reads about 55 to 60 cm above the mattress, and the mattress sits around 55 cm off the floor. That puts the headboard crown near 110 to 115 cm from the floor. Add the 35 to 40 cm of clearance and the plate centre lands close to 150 cm, which is taller than the 120 cm switch-height habit many people carry into a bedroom. Decide the throw, then let the height follow from the arithmetic.

Steps one and two: find the support, mark the plate

Linen headboards hide the wall behind them, so pull the bed 20 cm clear and run a Bosch GMS 120 or any capacitive detector across the height band you intend to use. Plasterboard with a 400 mm stud spacing is the common case in UK new-builds. Solid brick or block is the common case in older flats. That reading changes the fixing choice immediately.

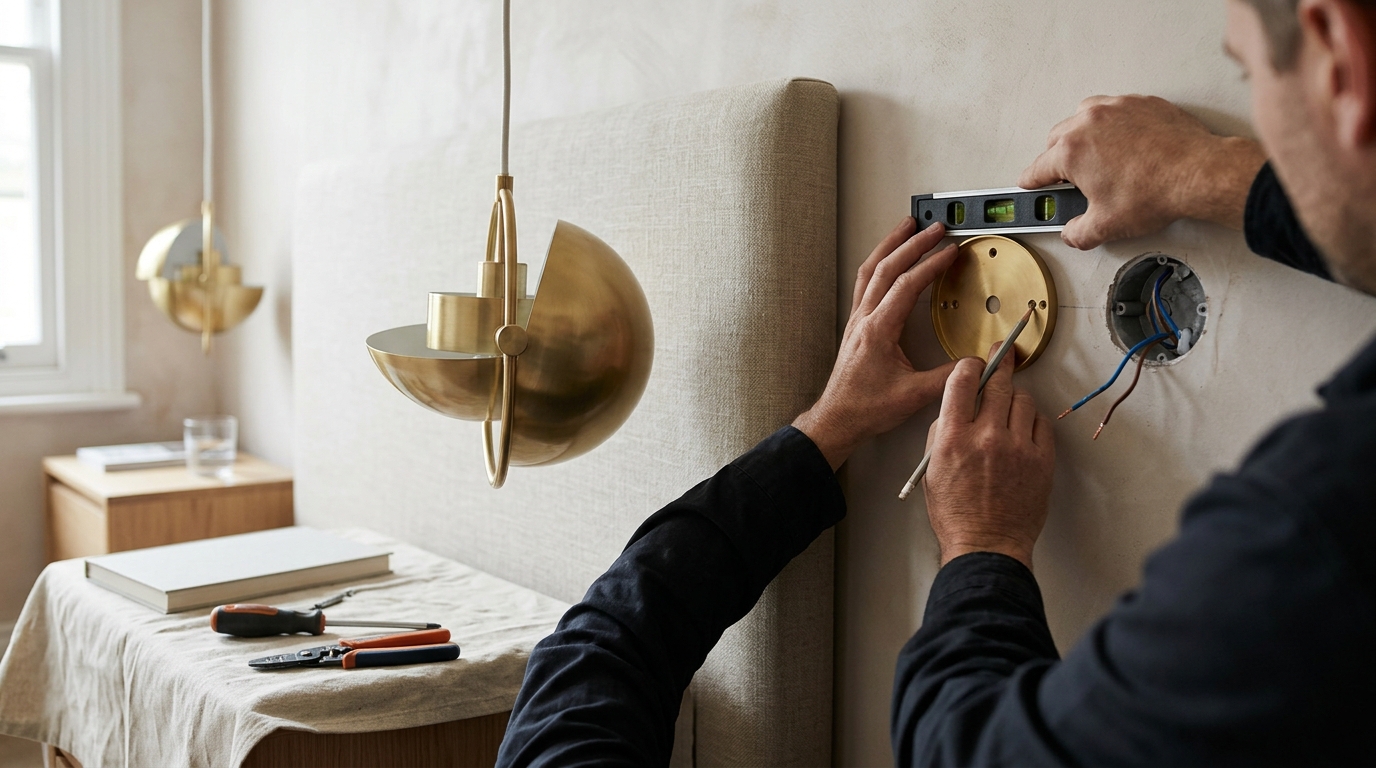

Mark the plate centre at the calculated height, then hold the actual plate against the wall and pencil through its screw holes. The Multi-Lite plate takes two fixings spaced about 60 mm apart vertically.

If both holes land in plasterboard with no stud behind, use cavity anchors. If one fixing catches a stud, favour the stud and let the second take a board anchor. Put a small spirit level across the two marks. A 2 mm tilt at the plate becomes a visible 15 mm tilt at the shade aperture 33 cm away, because the cone sits on a long lever arm.

A north-facing room changes the aim

In a north-facing room the wall stays a cool, even grey through the day, so the sconce carries more of the visual warmth. Angle the lower opal cone slightly steeper, toward 20 degrees below horizontal, to keep a warm pool tight against the bedlinen.

Steps three to six: drill, cable, hang, aim

For plasterboard with no stud behind the fixing points, a metal toggle such as the Fischer DuoTec 10 holds the 1.6 kg fitting with a wide safety margin. The cone arm adds leverage, so the anchor needs resistance to pull-out as well as shear. Drill at 10 mm, fold the toggle, push it through, and tug it flush before the screw seats.

For brick or block, use a 6 mm masonry bit and a nylon plug rated to 25 kg, which gives generous headroom for this fitting. Use the hammer setting for masonry. Use drill setting only for board, because hammering plasterboard chews the hole oversize and weakens the anchor grip.

Set a 35 mm drilling stop with a wrap of tape around the bit. The plate sits proud, the cabling runs behind it, and a screw driven 5 mm too deep can crack a plasterboard face and lose its bite. Vacuum dust as you go. A linen headboard pushed back against a wall streaked with brick dust transfers that dust to the fabric on first contact, and washable linen is forgiving within limits. Dry-fit the plate, check the level again, then back the screws out a half turn so the final tightening seats cleanly.

The Multi-Lite wall version ships in two cabling logics depending on market: a fabric-flex plug-in cord with an inline switch, or a hardwired back-entry for a fused spur. The plug-in version is the honest choice behind a headboard, because the cord can drop straight down behind the fabric to a socket at skirting level and stay out of view. Route it through a self-adhesive cable channel painted to match the wall, or tuck it behind the headboard edge where the upholstery meets the frame.

Hardwiring gives a cleaner wall and commits the room to a back box and a chased cable, which is a large intervention on a finished bedroom wall for one sconce. If the existing wall already has a switched fused connection unit at the right height, use it. Without an existing unit in the correct position, the inline-switch flex is the lower-disruption path. The switch sitting at hand height beside the pillow can be easier to use than a wall switch across the headboard. Position the inline switch about 70 cm down the cord from the plate so it rests near the mattress edge, within a flat reach from a lying position.

Seat the fitting on the plate and tighten the two screws in alternating quarter-turns, watching the lower cone as the plate pulls in. The alternating pattern keeps the plate from cocking to one side as it draws tight against the wall. Once snug, set the spirit level along the top edge of the plate one final time. Behind a headboard, the plate receives little attention, while the shade aperture shows any tilt across the room.

Now aim the lamp. Loosen the cone joints, point the lower opal aperture at the spot on the pillow where an open book sits, and tighten just enough to hold without forcing the friction joints. The upper cone can stay near-vertical to bounce a softer wash onto the ceiling, which fills the cool north light without glare. Sit on the bed, open a book, and check the pool covers the page at the distance your eyes actually hold it, around 35 to 40 cm from the face. Adjust the cone two or three degrees at a time. The aiming step can take longer than the drilling, because the holes are fixed and the cone angle is the part used every night.

When the headboard sits proud of the wall

Upholstered headboards on a divan base often float 3 to 5 cm off the wall on their support legs, and the gap changes the maths. If the headboard crown stands 4 cm forward of the wall plane, the cone has to clear that 4 cm before its light reaches the pillow, which effectively shortens the useful throw and pushes the ideal plate height up another 2 to 3 cm. Hold a tape from the wall to the front face of the linen before you commit the plate mark. Measure that distance before using the wall scanner, because the gap can exist even when the headboard appears to touch the wall.

The gap also helps the cable. A headboard standing 4 cm proud leaves a clean channel for the flex to drop straight down out of sight, with no adhesive channel needed and the cord simply living in the shadow behind the fabric. A neat cable drop can depend on a gap that disappears visually once the bed returns to the wall.
