Install a Dimmable LED Track With Philips Hue in 7 Steps for 40% More Control

Start at the consumer unit

Isolate the lighting circuit at the consumer unit before touching the ceiling box. Confirm dead voltage at the junction box with a two-pole tester such as a Fluke T90. Track systems usually draw from the same radial or loop-in lighting circuit that fed the old pendant, and the live conductor in that box is often a switched line returning from a wall switch instead of a permanent feed.

Hue GU10 spots need permanent line and neutral at the fitting because switching is handled over Zigbee. Any existing wall switch on that circuit has to stay permanently closed or be replaced with a blanking plate carrying a Hue Dimmer Switch on the surface.

Nordlux Link-style GU10 tracks carry 230V along the conductor rails. Philips Hue Perifo belongs to a separate architecture: the track is a low-voltage 48V system, with the driver built into the supply connector. Its dimming electronics sit upstream of the rail feed, and every spot clipped into the rail is already a Zigbee-addressable device. A 230V GU10 track and a 48V Perifo track are incompatible on the same feed.

Dimming electronics and flicker

The Hue Perifo driver supplies regulated low voltage, and each spot uses pulse-width modulation to control output. That design is why Perifo can hold a smooth curve down to roughly 1 percent, without the visible stepping often seen when retrofit GU10 lamps sit behind a cheap leading-edge dimmer.

On a 230V track fitted with Hue White and Colour Ambiance GU10 lamps, the track carries constant mains. Dimming happens inside the driver in each lamp, again commanded over Zigbee, so the rail never receives a phase-cut waveform.

A 230V track left on a legacy rotary dimmer puts two control systems in series. The analogue dimmer chops the supply, the Hue lamp electronics try to regulate from that chopped supply, and the result can be buzz plus erratic behaviour at the low end. Remove the analogue dimmer and let the lamps handle output over the network. Industry testing of retrofit smart GU10 lamps consistently shows usable dimming across the full 1 to 100 percent band with a clean upstream supply; visible flicker appears only with a residual analogue dimmer still wired in series.

Fix the rail into structure, then treat voids separately

A loaded track needs more support than ceiling plasterboard can provide. A 1 metre Perifo rail with three spots and the driver weighs well over a kilogram once the cabling is dressed, and the leverage at the rail ends increases pull-out force on the fixings.

Use a detector such as a Bosch GMS 120 to locate the joists along the planned line. Mark each joist crossing, then fasten the mounting brackets directly into timber with 4.5mm by 50mm woodscrews wherever a joist sits under the track.

Where the track crosses a void between joists, use hollow-wall anchors rated for the load. Fischer DuoPower 8x40 plugs work in plasterboard by knotting on the cavity side and expanding in solid material, which suits the mixed substrate often found across one ceiling run.

For a heavier multi-metre run, a metal cavity fixing such as the Fischer HM 5x52 spring-toggle gives higher shear capacity and is the safer choice for any bracket that lands on board only. Pre-drill at the exact diameter stamped on the plug. For the DuoPower 8, that means an 8mm hole; an oversized hole destroys the expansion grip that the fixing depends on.

The electrical and mechanical work meet at the supply connector, so leave enough cable length for termination without forcing the connector sideways. A rail that has to be twisted into place after the terminals are made will load the fixing nearest the connector before any spot is added.

Connect the supply and seat the spots

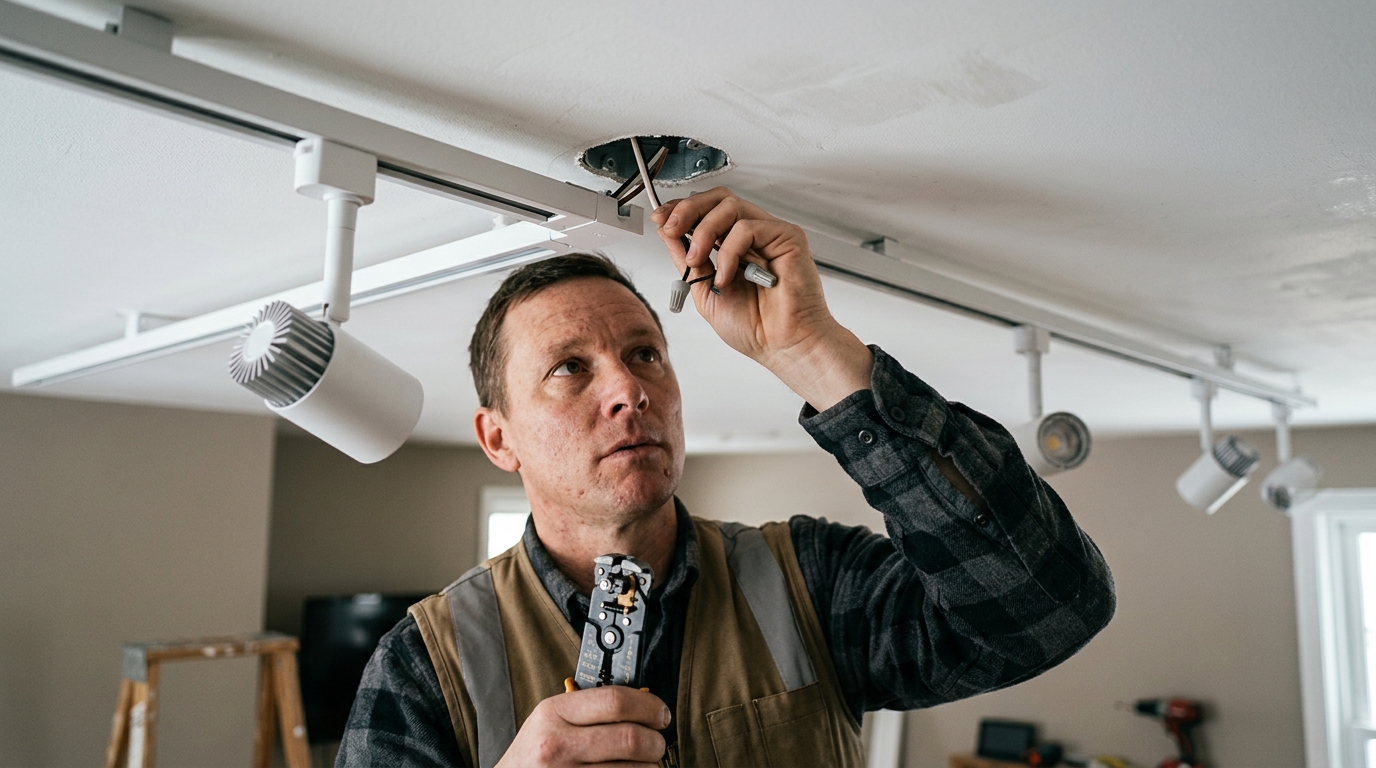

With the track mounted, feed the existing line, neutral and earth into the supply connector. On Perifo, the supply connector houses the 48V driver, so mains terminates there and low voltage travels along the rail. Tighten the terminal screws to a firm stop. A loose neutral on a lighting circuit is a known cause of intermittent dropouts that can look like a network fault even though the fault is mechanical.

Seat each spot by aligning its connector with the rail channel and rotating the locking collar until it clicks. The spot draws power immediately, and the Zigbee radio inside it boots within a few seconds. A brief warm-white flash indicates that boot sequence.

Spacing affects both the light pattern and the mesh. Spots placed at 250 to 350mm centres give an even wash on a 2.4m ceiling, and keeping them within 5 metres of each other or of the Hue Bridge keeps the Zigbee mesh hops short. Restore power at the consumer unit after every spot is seated and the supply connector cover is closed.

Pair the lights before building scenes

Open the Philips Hue app, go to Settings > Add light, and run a search with the Bridge powered and within range. Newly powered Hue spots advertise on the Zigbee channel already used by the Bridge, and a search typically finds all spots on a freshly energised track in one pass. If one spot fails to appear, power-cycle that single fitting at the consumer unit and run the search again.

Group the spots into a single room or zone so the Dimmer Switch addresses them together. The fourth-generation Hue Dimmer Switch binds to a room and steps brightness in four presets by default, while the long-press dim ramp gives fine control on a Perifo curve. One Dimmer Switch can control a room containing far more lights than the spots on one track. Room pairing keeps that later expansion available without rebuilding the control layout.

Bond the metal track

Metal track bodies must be bonded to the circuit protective conductor. Terminate the earth at the supply connector earth terminal and confirm continuity to the rail with a multimeter before energising.

Worked example: a 2 metre run

Take a 2 metre Perifo track carrying six spots at roughly 5.5W each. The total is 33W through a 48V driver rated to 100W. That electrical load is trivial for a lighting circuit, while the mechanical load calls for specific bracket spacing. The track ships with mounting points at intervals, and a 2 metre rail needs a minimum of three brackets to keep mid-span deflection below the point where the rail visibly bows.

Assume two of the three bracket positions land on joists and one lands in a void. The two joist fixings take 4.5 by 50mm woodscrews straight into timber. The void fixing takes a Fischer HM 5x52 metal toggle because that single mid-span bracket carries the highest bending moment if someone brushes the track during cleaning. Pull-out resistance for a correctly set spring-toggle in 12.5mm plasterboard runs into tens of kilograms, far above the 1.2kg distributed load. The margin covers accidental side loads and the weight of a future longer rail.

If all three brackets land in voids, three spring-toggles still clear the load. Deflection between unsupported board sections grows, so an additional fourth bracket at the 1 metre midpoint becomes worthwhile to keep the rail line straight under its own weight.

Why the track feels different from a wall dimmer

Output control on a Hue track is digital end to end. The perceived 40 percent of extra range over a basic phase-cut dimmer comes from the lamp electronics resolving brightness in fine steps that the network can address individually. Each spot can sit at a different level within the same room, while a single wall dimmer modulates the whole load at once.

That per-spot addressing lets a track over a kitchen worktop run the two end spots dim and the three central spots bright from one scene. At the very bottom of the curve, some Hue White and Colour spots shift slightly warmer below 5 percent output. The behaviour is baked into the lamp firmware, so changing brackets, rails, or supply wiring leaves the colour shift in place.
