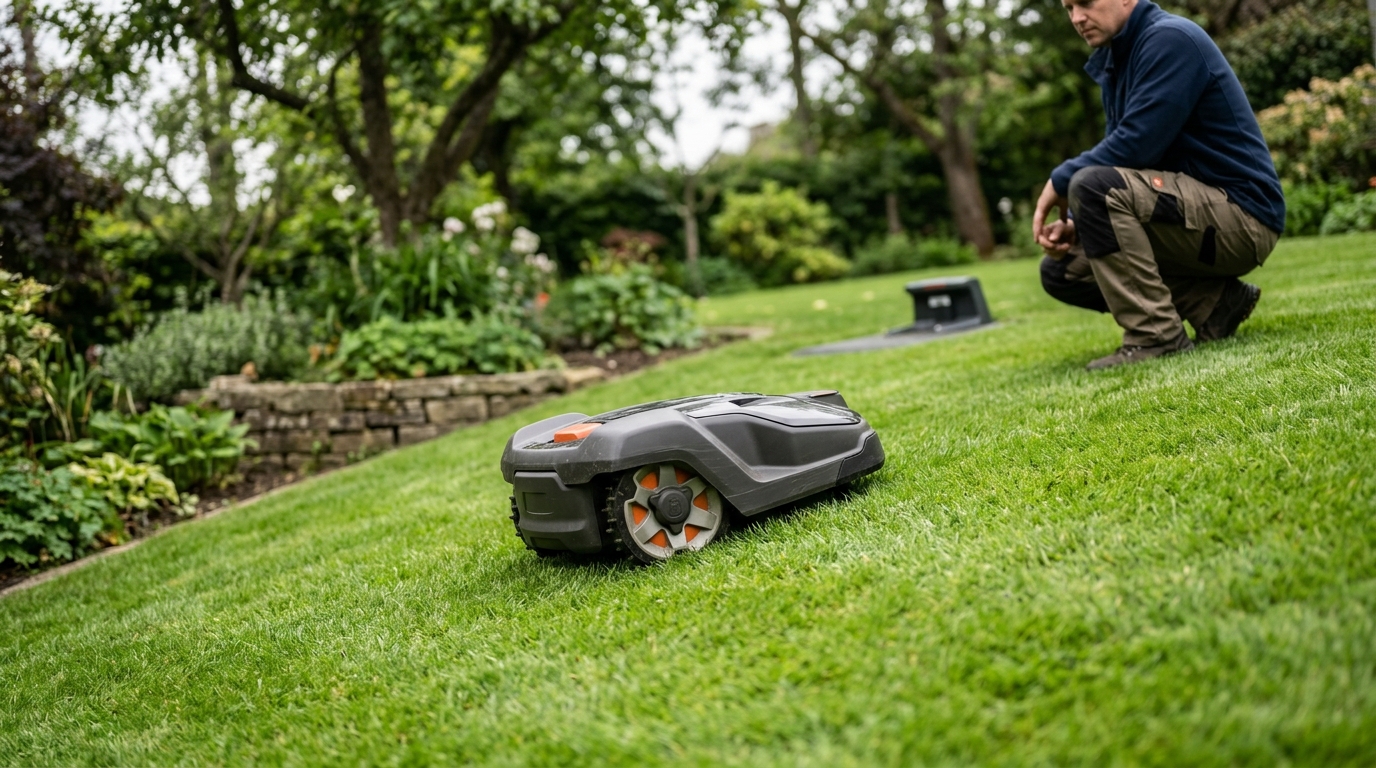

Husqvarna Automower 305 Installed on a 5-Degree Sloped Garden

Boundary Wire Limits at 5 Degrees

Husqvarna gives the Automower 305 two different slope figures: up to 40 percent incline inside the working area, about 21.8 degrees, and 9 percent along the boundary wire, roughly 5.1 degrees. A 5-degree lawn converts to about 8.7 percent, so the perimeter run already sits close to the stated limit before ground conditions enter the picture.

That small margin makes the cable route matter. If the boundary wire runs straight down the fall line at the steepest part of the garden, the mower may slow on the climb and carry too much speed on the descent. In that situation it can clip the wire signal and produce a Help, tilted error.

Moisture narrows the margin further. Damp grass on an 8.7 percent face gives the rear wheels less grip than the dry specification assumes, and the 305 is likely to stop for wheel slip before it shows anything that looks like a slope fault.

A diagonal wire route across the slope is usually the safer layout. The mower then meets the gradient at an angle instead of dropping straight through the steepest line, which can turn a marginal perimeter into a dependable one.

Put the Charging Station on Flat Ground

The 305 charging station needs level ground, with at least 3 metres of straight flat wire out from the front of the dock and 2 metres of clear space to either side. Placing the dock at the foot of a 5-degree slope creates a docking problem the manual does not spell out: the mower can approach downhill, pick up speed, and meet the charging contacts slightly out of line. If that happens often enough, it can throw a No loop signal during charging.

Use the flattest corner of the garden for the dock, even when the guide wire has to travel farther. The 305 has a single guide wire, and Husqvarna allows roughly 400 metres of total loop length on this model. Spending 6 or 7 metres to reach a flat docking position is a small cost compared with a mower that fails to seat overnight and begins its next run on a half-charged 18 V Li-ion pack.

Where possible, set the backplate against a fence or low wall. In exposed sloping gardens, wind and runoff tend to carry debris toward the contacts. A sheltered backplate can reduce manual contact cleaning from a weekly job to roughly monthly.

Pegging the Wire for the First Wet Fortnight

Start with 75 cm peg spacing on flat sections, then tighten the spacing to 50 cm anywhere the cable crosses the 5-degree face. The wire expands, contracts, and shifts under load. On a slope, gravity adds a slow downhill creep, and loose cable can lift into the path of the blade disc.

Keep the wire 30 cm from solid obstacles such as paving edges and raised bed timber. Use 35 cm beside a low fence that the mower might lean against. On the sloped section, increase that offset to 40 cm, because the 305 can track slightly wide when cornering there.

That extra distance protects both cable and edge. The blade disc on this model carries three razor blades around a 22 cm cutting width, and a wire that has moved 5 cm toward an obstacle ends up exactly where it can be cut.

A staged installation avoids a lot of rework. Lay the whole loop loose first, connect it to the station, and check for a steady green loop LED. Then let the 305 make one guided walk around the installation before the peg heads go fully flush.

Any place where the mower hesitates or veers deserves attention before the cable is fixed in place, since lifting a pegged cable out of settled soil is far more work than nudging a loose one.

Rain changes the slope section more than the flat sections. After the first heavy rain, topsoil settles and pegs can sink, so a cable that looked flush in dry ground may bow above the surface. A second pegging pass two weeks after installation, focused on the gradient, catches the usual loose-wire faults. Most loose-wire problems on sloped gardens trace back to skipping that follow-up.

Use genuine Husqvarna boundary wire or an equivalent cable rated for direct burial. Cheap bell wire can corrode at splices within a season. On a slope, where water collects, a corroded splice tends to fail faster than the same joint on level ground.

Worked Example: 18 m by 14 m Garden

Take a rectangular garden measuring 18 metres by 14 metres, with the 5-degree fall running along the 18 metre length. The perimeter loop is 2 times 18 plus 2 times 14, which gives 64 metres of boundary wire before any island cutouts are added.

Now put the dock in a flat bottom corner and route the guide wire to it. If the flattest usable point sits 9 metres in from the steep edge, the guide wire brings the active wire total to 73 metres, well inside the 305 loop budget. The 305 is rated for up to 600 square metres, and this plot is 252 square metres, so capacity gives you plenty of headroom. The real squeeze is the cable route across the slope.

The two 14 metre ends run across the contour and climb the 5-degree face, so the mower crosses those sections at the gradient limit. The two 18 metre sides run along the contour on the flatter top and bottom edges. With the dock on the downhill long side, every return to base finishes on level wire, while the climbing happens during the cutting cycle when the battery is strongest.

Traction, Wheels, and the Descent Divot

There is no tyre pressure setting on the Automower 305. It uses solid moulded rear wheels with directional tread, leaving wheel cleanliness and turf condition as the useful variables.

The descent divot is the common failure mark on a borderline slope. As the 305 turns at the bottom of a downhill pass, the inside wheel slows and the outside wheel keeps driving. On damp 8.7 percent turf, the driven wheel can scuff away a crescent of grass. Over a fortnight, that crescent can become bare soil.

Two adjustments help. Set the mowing schedule to avoid the hours immediately after dew or rain. In many UK gardens, that means starting from late morning instead of 6 am. Also delay any one-notch reduction in cutting height until the lawn has thickened, because longer grass on a slope gives the wheel better grip than a tight cut.

Existing bare patches make the scuffing worse. The wheel gets less grip on soil than on turf, so the same turn becomes more abrasive each pass. Oversow the worn crescent with a hardwearing ryegrass mix and keep the mower off that section for three weeks to reset the surface. The mower follows the boundary geometry whether the turn falls on strong turf or damaged ground.

Rain Control Through the Timer

The 305 has no rain sensor. On a 5-degree garden, that absence matters more than it does on level lawns.

Wet-weather control has to come from the keypad timer. Set the schedule so the mower stays docked during the soggiest parts of the day, especially on gardens where the boundary wire crosses the full fall of the slope.

The Details the Spec Sheet Leaves Out

The 9 percent boundary figure assumes a clean slope with the wire as the only relevant feature. Most gardens add complications the number cannot capture. A drainage channel cut across the fall line shifts grip locally. A moss-prone strip under a north-facing fence does the same in a different way, and so does the compacted track left by repeated wheelbarrow runs.

This is why the turning zones repay more attention than the straight runs. The mower may cross most of a 5-degree garden cleanly, then scrape the same damp crescent at the bottom of each descent until the turf thins out.

The question worth chasing on your own plot is which single section of the loop will be the first to misbehave after the autumn rain arrives, because that is the spot to over-engineer at install time rather than revisit with a trowel later.
