Hang a 40kg Mirror on a Plasterboard Wall with Fischer DUOPOWER Fixings

Split a 40kg mirror across two fixing points and each one nominally carries 20kg, but that assumes the load stays static and the wall behaves. Real plasterboard walls do not. A 12.5mm board on 400mm or 600mm stud centres flexes, and the pull on a top-hung mirror is partly shear and partly a lever action that tries to lift the fixing outward. The Fischer DUOPOWER 10x50 is rated for both, and the reason it turns up in so many fitters’ pouches is that a single plug copes with a hollow cavity behind the board and a timber stud if you happen to hit one.

Why the DUOPOWER geometry matters at 40kg

The DUOPOWER has two working zones moulded into one nylon body. In dense material the whole plug compresses and grips the sides of the hole. In hollow plasterboard the front section stays put while the rear folds into a knot on the far side of the board, spreading the load across a wider footprint than a straight expansion plug ever could. That knotting action is what gives it usable pull-out figures in board that a basic wall plug would tear straight through.

Fischer publishes recommended loads for the 10x50 in various substrates, and in 12.5mm plasterboard a single fixing sits well below what a 40kg mirror on two points demands once you apply a sensible working margin. The published pull-out and shear values are laboratory maxima, so nobody loads to the number on the packet. Dividing the mirror weight across two DUOPOWER 10 fixings, each carrying roughly 20kg in shear against a much higher rated capacity, is the spacing that keeps the installation inside a comfortable band. Adding a third fixing along the top rail drops the per-point load further and stiffens the whole assembly against the board flexing.

Match the drill bit to the plug, not the screw

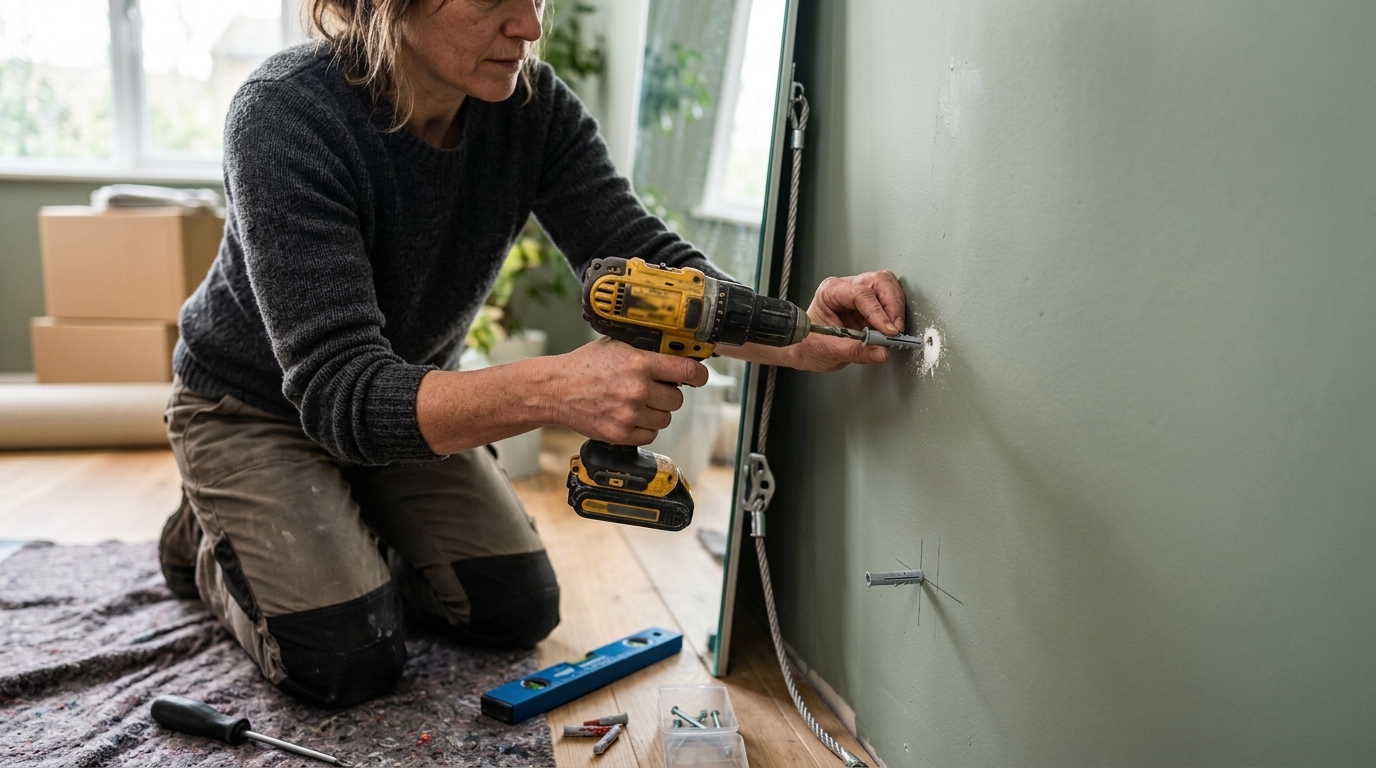

A 10mm plug needs a 10mm masonry bit, and the temptation to open the hole to 11mm because the plug feels tight is the fastest way to halve your holding power. Drill on hammer setting only if you find masonry behind the board; on the plasterboard itself, switch hammer off and let the bit cut cleanly so the paper face does not blow out into a ragged crater. A blown face means the plug seats against nothing.

Depth matters as much as diameter. The 10x50 needs the hole drilled deeper than 50mm so debris at the bottom does not stop the plug seating flush. Wrap a strip of masking tape around the bit at 60mm as a depth stop, or use the depth gauge on the drill if it has one. Push the plug in by hand until the collar sits against the board face. If it will not go, the hole is undersized or full of dust; pull the plug, clear the hole, do not force it.

The screw is the third variable. Fischer specifies a screw diameter range for each DUOPOWER size, and for the 10 that means a 6mm to 8mm woodscrew or the equivalent. Too thin and the plug will not expand fully; too fat and you split the nylon. The screw must also be long enough to pass through the mirror bracket, cross the full length of the plug, and still have thread biting past the knot zone.

Find the studs first

Run a Bosch or Stanley stud detector across the wall before you drill anything and mark every timber you find. A fixing that lands in a stud does not rely on the cavity knot at all and carries far more than one in open board.

The bracket and the levelling problem

Most 40kg mirrors ship with either a pair of D-rings on the back or a split batten. The split batten, sometimes sold as a French cleat, is the better choice at this weight because it distributes load along the whole top edge and lets you shift the mirror sideways after hanging to centre it. If the mirror only has D-rings, you are relying on two discrete points and the alignment has to be right before you drill, because there is no lateral adjustment afterwards.

Measure the distance between the two D-rings with a steel tape, not by eye, and transfer that exact measurement to the wall. The classic error is measuring ring centres on the mirror but marking bracket-screw centres on the wall, which shifts everything by the offset between the ring and the screw. Mark both points, check they are level with a 600mm spirit level or a laser line, then drill.

With a split batten, the wall-side half gets screwed into three or four DUOPOWER fixings along its length. Level that batten carefully because it dictates the mirror’s angle; the mirror-side half simply drops over it. The interlocking 45 degree cut pulls the mirror tight against the wall as it settles, which is exactly the behaviour you want with heavy glass that would otherwise sit proud at the bottom.

One detail people miss: a large mirror needs a bottom restraint or a felt bumper so it cannot swing at the base and walk sideways off a cleat over months of door-slams and footfall. Two small self-adhesive felt pads at the lower corners solve it and stop the glass rattling against the plaster.

Worked example: three fixings on a 40kg mirror

Take a 40kg mirror 900mm wide with a split batten. Spread the load across three DUOPOWER 10x50 fixings and each point carries about 13.3kg in shear, comfortably inside the plug’s rated capacity in 12.5mm board. Space the three fixings across the 900mm batten at roughly 100mm, 450mm and 800mm from one end, keeping the outer two at least 100mm in from the mirror edges so the leverage stays balanced.

Use 6mm x 60mm woodscrews. Sixty millimetres gives you 12.5mm of board, plus the 50mm plug body, plus the batten thickness of around 18mm, which means the screw needs to be longer than plug-plus-batten to fully expand the knot. Recheck that arithmetic against your actual batten: a thicker batten pushes the required screw length up and a screw that stops short of the knot zone never develops full grip. If one of the three holes lands on a stud, so much the better; that point alone could hold most of the mirror.

When plasterboard is the wrong host entirely

Some walls are dot-and-dab plasterboard bonded to a masonry backing with a cavity of 10mm to 40mm behind. Here the DUOPOWER can end up spanning an air gap with nothing to knot against, and it feels solid on install then loosens later. If you tap the wall and hear a hollow drum over a large area with the occasional dead spot, you are likely on dot-and-dab. A longer fixing that reaches through to the masonry, such as a Fischer frame fixing sized to cross the cavity, is the answer for that build, not a cavity plug hanging in the void.

The only way to know the cavity depth is to drill one exploratory hole and probe it with a bent wire before committing to a plug length. If the bit breaks through into masonry at 25mm, measure from there. Guessing the cavity is how a mirror that felt bomb-proof on Saturday is on the floor by the following week.

What the packet rating never tells you is how your specific board was fixed to its studs, and whether the screws holding the plasterboard itself are sound; a fixing is only ever as good as the board it knots behind. Worth a thought before you trust 40kg of glass to a wall you have not opened up.
