Fit an Oase BioSmart 18000 Filter to a Koi Pond Over a 9,000-Litre Volume

Oase publishes the BioSmart 18000 at a maximum of 9,000 litres for a koi pond and 18,000 litres for a pond without fish. The gap between those two numbers is stocking density. Koi produce far more ammonia per litre than goldfish or an unstocked feature pond, so the biological rating halves. A reader with 9,500 or 11,000 litres is standing just outside the manufacturer band, and the first decision is whether the shortfall is small enough to close with flow and media, or large enough to need a second unit.

The filter body is a gravity-return box filter with foam stages, a UVC option on the C variant, and a manual sludge-clearing handle. It is not pressurised. That single fact drives every installation choice below, because a non-pressurised box has to sit at or above the pond return level and cannot be buried below the waterline the way a bead or pressure filter can.

Start with turnover, not litres

The number that matters for a koi pond is turnover, meaning how often the full volume passes through the filter per hour. For a stocked koi pond the working target is the entire volume once every two hours, so a 9,500-litre pond needs roughly 4,750 litres per hour reaching the filter chamber. Pump flow on the box, not pump flow on the label, is what counts.

Head loss eats the label figure. A pump rated at 6,000 litres per hour at zero head might deliver 4,200 at 1.5 metres of vertical lift plus hose friction. The Oase AquaMax Eco Premium range publishes flow curves against head, and reading the curve at your actual lift height gives the real delivery. Measure the vertical distance from pump to filter inlet, add roughly 0.3 metres of equivalent head for every metre of 40mm hose run with a bend, then read across.

For an 11,000-litre pond the two-hour turnover target rises to 5,500 litres per hour at the box. The BioSmart 18000 inlet and the foam surface area can pass that volume, but the biological conversion capacity is the constraint. Pushing more water through a filter sized for 9,000 litres does not add nitrifying bacteria surface. It just shortens contact time.

The gravity-return constraint

Because the BioSmart is a non-pressurised box, water enters near the top and exits by gravity through a 50mm outlet back to the pond. The outlet must sit above the pond surface so the return falls into the water. If the box is set too low, the pond backfills into it and the sludge chamber overflows.

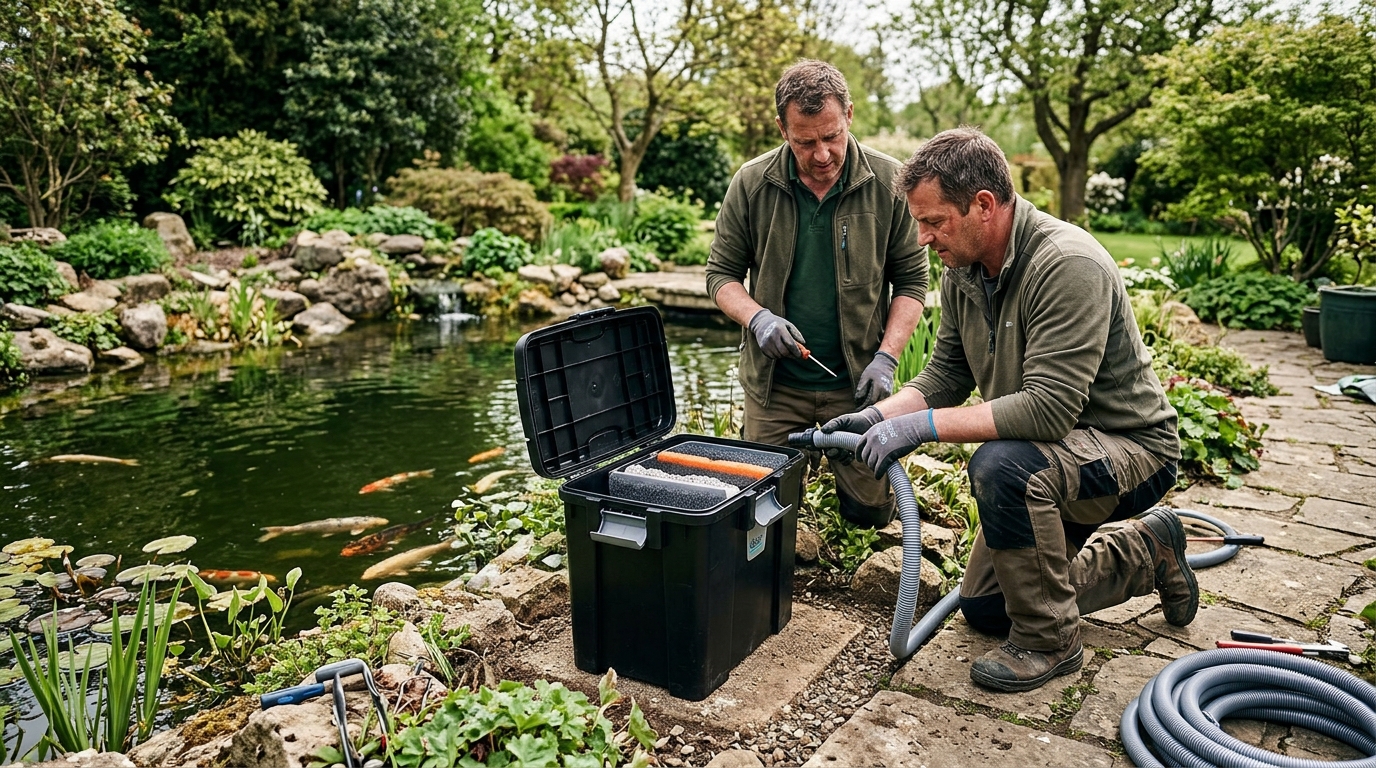

Most installations place the filter on a level paved plinth behind the pond edge, higher than the waterline by at least 100mm at the outlet. A block paving pressure washer is worth running over that plinth before siting, because a filter full of media and water weighs well over 100kg and a mossy slab shifts under it. The pump sits in the pond, feeds the box uphill, and the box drains back down. There is no siphon and no sealed loop.

This is where oversizing the pump backfires. Too much flow overwhelms the gravity outlet and water rises inside the box faster than 50mm can drain it. The chamber floods over the lid seal. The correct flow is the two-hour turnover figure, capped at what the outlet passes, whichever is lower.

Media and bacterial loading

The BioSmart 18000 ships with coarse and fine foam sets. The foam does two jobs at once: mechanical straining of solids and biological surface for Nitrosomonas and Nitrobacter, the bacteria that convert ammonia to nitrite and nitrite to nitrate. For a pond just over the koi rating, the useful move is adding biological media in a downstream chamber, not cramming more foam.

Biological surface area is measured in square metres per litre of media. Sintered glass and structured plastic media such as Kaldnes K1 offer far more colonisable surface per litre than foam. A separate flow-through chamber holding 20 to 30 litres of K1, plumbed after the BioSmart outlet, extends nitrifying capacity without touching the box itself. This is often cheaper than jumping to the next filter model and keeps the sludge-clearing function of the original box intact.

Bacterial colonies take four to six weeks to mature at spring water temperatures. During that window ammonia and nitrite readings climb even with correct flow, because the population has not caught up to the fish load. A liquid test kit reading ammonia, nitrite and nitrate weekly through the first two months tells you whether the extended media is keeping pace. Zero ammonia and zero nitrite with a rising nitrate figure is the mature state.

Feeding rate is the input side of that equation. Overfeeding a marginally sized filter is the fastest route to an ammonia spike. Koi at 18C need far less food than the same fish at 24C, and cutting the feed by a third during a warm spell buys the filter room.

When a second BioSmart beats an upgrade

Above roughly 11,000 litres of stocked koi water, running two BioSmart 18000 units in parallel outperforms a single larger filter for most garden ponds. Two boxes give redundancy during cleaning, since one keeps running while the other is serviced, and they split the flow so each operates inside its rated band. A single failure point becomes two independent ones.

Pump timing and winter idling

A Hozelock Aquastop timer is sometimes fitted to run the pump on a schedule, but a koi filter should not be cycled off during the active season. Nitrifying bacteria die back within hours without oxygenated flow, and restarting an idle box pushes a slug of deoxygenated, ammonia-loaded water into the pond.

Winter is the exception. Below about 10C koi metabolism drops and bacterial activity nearly stops, so many keepers reduce flow or lift the pump to a shallower shelf to avoid supercooling the deep water where fish overwinter. If the BioSmart is drained and stored over winter, the foam should be kept damp in pond water, not scrubbed clean, so a residual bacterial population survives to reseed in spring.

A worked example at 10,500 litres

Take a pond measured at 10,500 litres with a moderate koi stock of eight fish around 25cm. Two-hour turnover asks for 5,250 litres per hour at the box. The pump sits 1.4 metres below the filter inlet with a 4-metre hose run and two bends, giving roughly 2.6 metres of total effective head once friction is added.

An AquaMax Eco Premium 8000 reads near 5,400 litres per hour at 2.6 metres on its published curve, landing just above target. The BioSmart foam handles the mechanical load, but the biological rating is 1,500 litres short. A 25-litre K1 chamber after the outlet adds the missing nitrifying surface. Weekly testing through the six-week cycle confirms whether the addition closed the gap, and the feed is trimmed on any day the water tops 22C.

That configuration keeps a single BioSmart 18000 viable to around 11,000 litres. The open question is stocking growth: eight 25cm koi become eight 45cm koi in a few seasons, and a fish that size can triple its ammonia output. At what point does the pond outgrow the box faster than the media can compensate?
