Fit a Schluter Ditra Membrane Under Ceramic Tiles in 7 Steps for Crack-Free Floors

Why the mat has to move

The selling point of Ditra is the air space built into the sheet. Beneath the squared-off cutback cavities, the polyethylene layer is meant to shear sideways when the substrate moves while the tile covering stays comparatively still. A concrete slab that cures, swells in summer humidity, or sits over a heated screed can shift horizontally by fractions of a millimetre across a room. If that movement is locked rigidly to a 60cm porcelain plank, the tension usually finds the weakest line, which is the grout joint or the tile body itself.

Extra adhesive contact can turn the system into one stiff sandwich. Heavy buttering on the fleece side and a skim coat over the studded top before the tile goes down reduce the very decoupling that justifies the mat. The fleece is supposed to anchor to the floor. The studded face grips the tile mortar inside the cavities, leaving the polyethylene web between them with room to flex. Schluter’s published shear data for the product covers movement up to roughly the thickness of the matting, so a 6mm crack in a slab can remain below the finished surface. Once that sideways freedom is removed, the purchase has become an expensive vapour layer.

Step 1 and 2: prepare the substrate and set the fleece

Start with a slab or plywood deck that is flat to within 3mm over a 2m straightedge. Ditra leaves the floor shape unchanged. A hollow under the mat becomes a hollow under the tile, and porcelain spanning a void can crack the first time someone drops a pan on it. Grind high spots, fill low spots with a cementitious leveller, vacuum twice, and damp-wipe the surface. Dust is the most common reason fleece anchoring fails on a slab.

Choose the mortar under the fleece by substrate. Over concrete, use an unmodified thinset, the standard grey C1 type, because it cures by hydration while trapped under the impermeable polyethylene. Over plywood, switch to a modified thinset so the bond can cure chemically even with limited moisture escape through the mat.

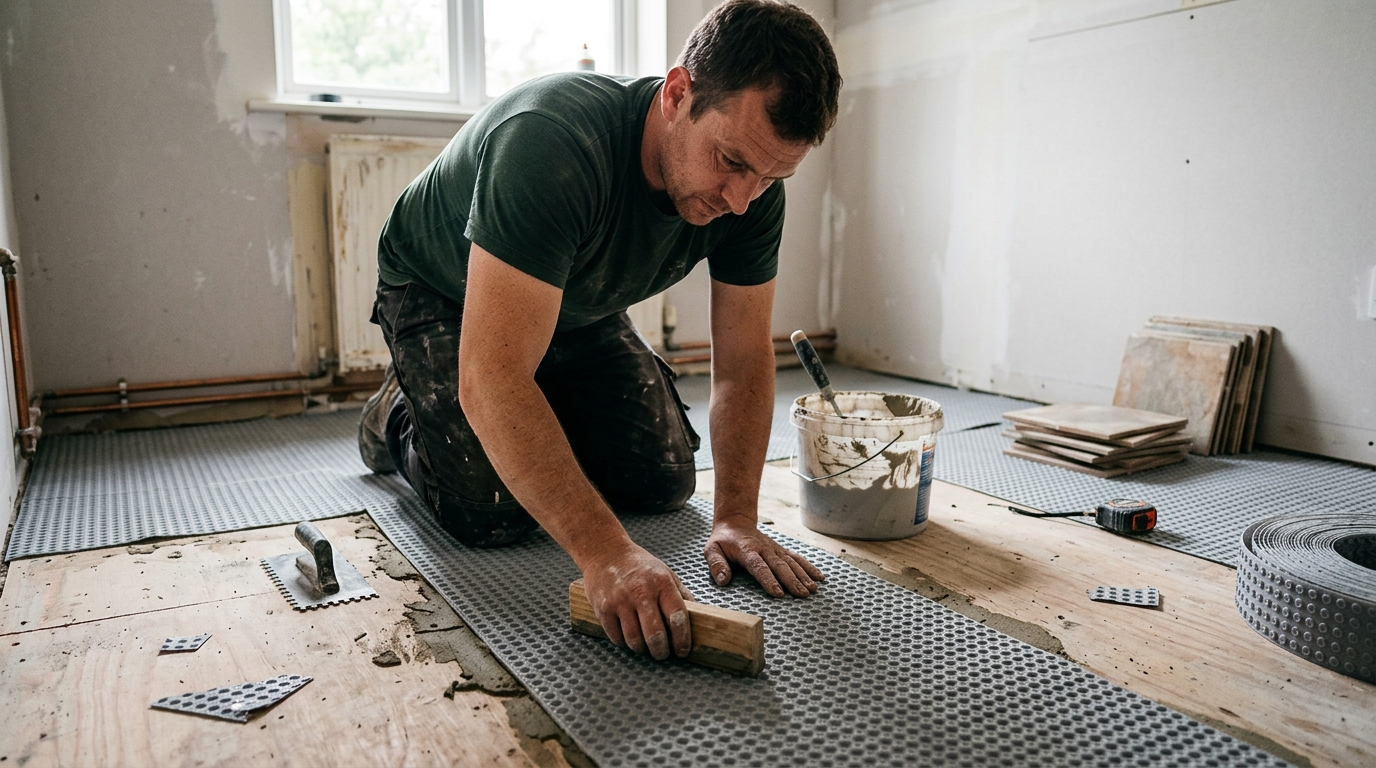

Comb the mortar with a 3mm by 3mm square-notch trowel, keeping the notch size there. Press the fleece into the wet ridges and flatten the sheet with a grout float or screed board. Work from the centre toward the edges so trapped air can escape. The ridges should collapse into a continuous contact layer beneath the fleece.

Butt the sheets edge to edge. Avoid overlaps, and keep any gap narrower than the thickness of the matting. A 25cm utility knife with a fresh blade cuts the polyethylene cleanly. A dull blade tears fleece from the back and weakens the bond at the cut line.

Step 3: let the anchoring coat grab

Give the fleece thinset time to skin over before loading the surface. On a warm slab that may take less than an hour; in a cold winter room it can take most of a day.

Press a knee near an edge. If the mat slides on the wet mortar, wait longer, because tiling over a floating sheet builds movement into the layer that should be controlling it.

Step 4: fill the cavities and set the tile

The studded top of the Ditra needs thinset forced into every square pocket. This cavity fill is the bond that decides whether the floor stays quiet for a decade or starts drumming and popping after two winters.

Use a 6mm by 6mm square-notch trowel or a larger one, depending on tile size. Hold the trowel low on the first pass so mortar is driven into the cutbacks. Make a second pass at full angle to form the ridges that will bed the tile.

On the top side, the mortar is exposed to air through the cavities and is not sealed under polyethylene. Either unmodified or modified thinset can be used there. For large-format porcelain, a modified mortar with better non-sag behaviour and longer open time earns its price. A 60cm by 60cm porcelain tile has enough weight and surface area that fast-setting unmodified mortar can leave you fighting lippage.

Control open time tightly. Ditra cavities draw a small amount of water from the mortar, so the surface can skin faster than it would on a bare slab. Mix smaller batches. Once a batch starts to crust, it gives false contact; the tile sits proud, and the hollow spots may only show themselves when grout cracks months later.

Check transfer by lifting a freshly set tile every dozen or so. Aim for full mortar coverage on the back. Anything below roughly 80 percent contact on a floor that takes foot traffic is a future failure.

Work in sections that can be reached without kneeling on tiles just laid. Backbutter the heaviest pieces. Keep the trowel ridges running in one direction so air has a route out as the tile beds down, then beat each tile in with a rubber mallet and a beating block.

Step 5: grout and movement joints

Grout after the setting mortar has cured, typically after a full day and longer in cold rooms. Pushing grout into joints over green thinset can shift tiles by a hair, and that hair becomes a lippage line under raking light from a window.

The joints at the room perimeter and at any change of plane matter most. Leave a gap against walls and fixed cabinets. Fill that gap with a flexible sealant. The tile field needs slight freedom to behave as a floating plane; rigid grout at the skirting pins the edge and reduces the effect of the mat. On floors over about 7m in any direction, or over a heated screed, add intermediate movement joints as well.

Step 6: support the doorway edge

Where the Ditra field meets a different floor or a doorway, the mat edge needs support and the tile edge needs a profile or a generous flexible joint. A bare polyethylene edge under a tile lip at a threshold is the place where heels and trolley wheels find the unsupported corner.

Schluter sells matching edge trims, and a simple bedded transition strip set in the same thinset can also work. Keep the tile within a few millimetres of full support right up to the edge.

Step 7: work out mortar coverage before buying bags

Take a 4m by 3m bathroom, which gives 12 square metres. Ditra is sold in rolls around 30 square metres and also in 1m wide cut lengths, so one roll covers that floor with offcuts for a small en-suite.

For the fleece coat with a 3mm trowel, plan on roughly one 20kg bag of unmodified thinset per 8 to 10 square metres. That means two bags with margin. For the top side with a 6mm trowel under porcelain, coverage drops to around 5 to 6 square metres per bag, so allow two to three bags of modified mortar. The total is four to five bags for a floor that a beginner may try to complete with one.

Grout for 12 square metres of 30cm tile with 3mm joints usually runs one to two bags, depending on colour and joint depth. The trowel sizes are separate purchases: a 3mm notch for the fleece and a 6mm or larger notch for the tile side. Using the larger trowel for both coats floods the fleece layer and leaves the cavities short of mortar.

Large-format porcelain leaves one planning choice unresolved. The 3mm-over-2m flatness target belongs to a trade history with smaller pieces, while a 120cm plank can show a rise or dip that a 15cm tile would have hidden. The open question is how much of that deviation the chosen format will reveal once the floor is in service.
