Fit a Daikin Underfloor Heating Mat Beneath Porcelanosa Tiles in 7 Steps

Test each Daikin mat while it is still in the box. Clip a multimeter across the two cold-tail conductors and write the ohm value on the back of the thermostat manual before the roll is opened out on the floor. The reading should be within roughly ten percent of the rating printed by Daikin on the label, often in the 40 to 70 ohm band for a mid-sized mat. Take the same reading at three stages: out of the box, after the mat is fixed down, and after the Porcelanosa tiles are laid. A drifting value usually means the heating element has been damaged by a trowel edge, and that fault is easier to catch while adhesive is still wet.

Measure the heated zone separately from the room size. Count only the floor people will stand on, then subtract the footprint of the bath, vanity, and kitchen island. A 4 square metre bathroom may need only 3.2 square metres of mat. Order to the smaller heated area. Daikin mats cannot be cut; the mesh backing can be snipped so the spacing between runs can be adjusted. An oversized mat wastes money and creates a trip risk if it has to fold back over itself.

Substrate work before the mat goes down

Porcelanosa porcelain is dimensionally stable and moves very little as temperature changes. The floor layers beneath it behave differently. A suspended timber floor can flex, a sand and cement screed stores heat slowly, and an old anhydrite screed may still be releasing moisture months after the surface appears dry. Each base changes the layers needed under the heating mat.

On concrete or screed, the usual build-up is insulation board, then the mat, then either self-levelling compound or tile adhesive. Insulation has a large effect on warm-up time. A 6mm tile-backer insulation board such as Marmox or Wedi helps direct heat upward instead of letting the slab absorb it first. That can be the difference between a floor that feels comfortable in twenty minutes and one that takes more than an hour.

Timber needs tighter control. Deflection across joists has to be reduced before tile adhesive goes anywhere near the floor, or the bed can crack. A common fix is an overlay of tile backer board, screwed at 200mm centres into the joists with suitable fixings. Where a backer board or thermostat box is fixed into a masonry return wall, Fischer DuoPower wall plugs in 6mm or 8mm grip without spinning in soft block. Basic expansion plugs tend to spin in aerated concrete. The aim is a surface with minimal movement, because the heating element inside the mat tolerates very little flex.

Thread the floor sensor through its conduit during this preparation. The thermostat reads from a probe positioned between two heating runs, never directly over a heating cable. If the probe sits above an element, it reads hot, shuts the floor off early, and the room does not reach the set temperature. The conduit tip should extend at least 300mm into the heated zone, with a gentle bend so the probe can be withdrawn and replaced later if it fails.

Dry layout, chalk marks, and primer

Unroll the mat over the cleaned substrate and check the whole layout with no adhesive underneath. The cold tail must reach the thermostat back box without strain. The mesh should turn cleanly at the walls, and no heating run should cross the doorway threshold where a trim may later be fitted. Mark the no-go areas with chalk: under fixed furniture, under the shower tray, and within 50mm of the perimeter walls.

Prime the substrate once the layout fits. A diluted acrylic primer, the type sold with many flexible adhesives, binds dust and stops a slab pulling moisture out of the adhesive too quickly. Let the primer turn tacky before bedding the mat. Take the second resistance reading immediately before the mat becomes fixed in place.

Bedding the mat under large porcelain

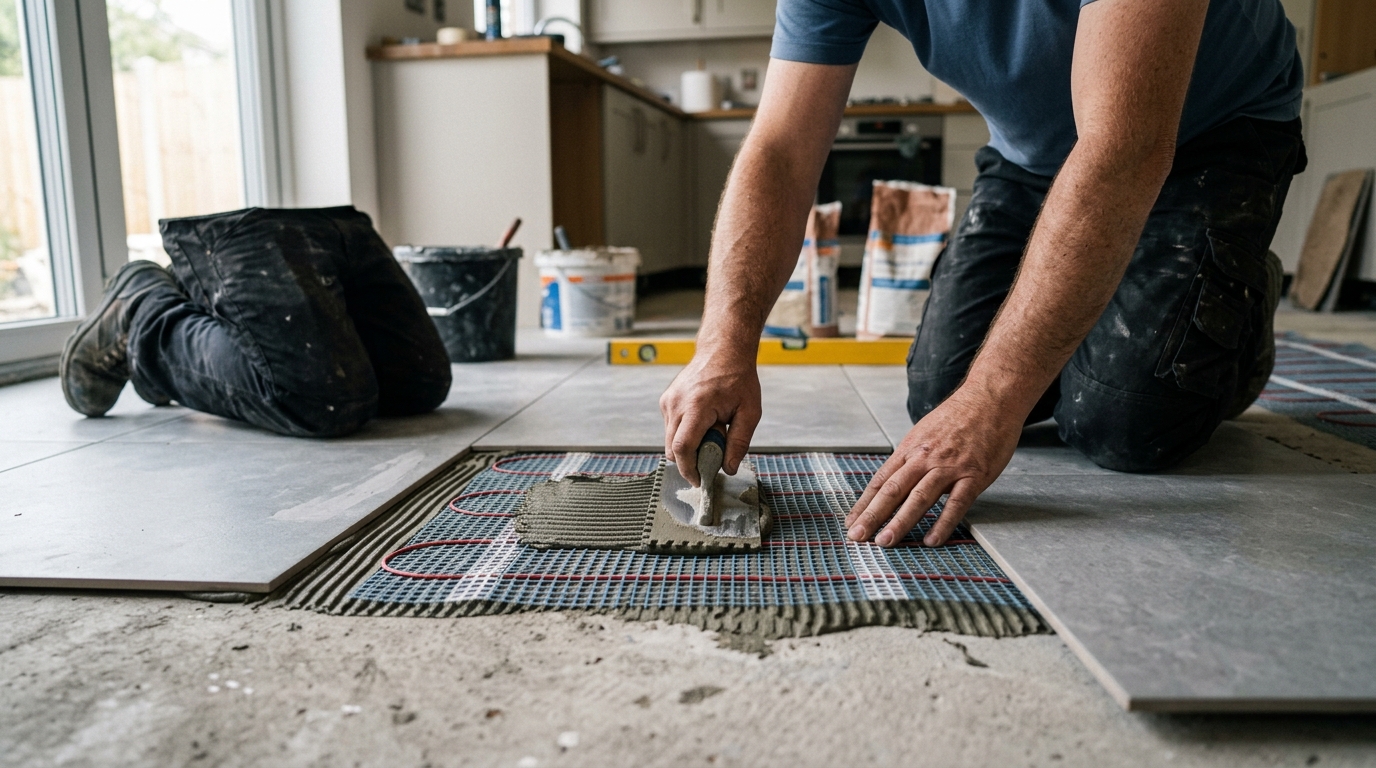

Use a flexible, deformable tile adhesive rated for heated floors. The correct product is an S1 or S2 class cementitious adhesive; a rapid-set rigid bag is unsuitable for this floor build-up. Comb the adhesive with a 6mm notched trowel held at a steady angle so the ridges collapse fully as the tile is pressed down. Full coverage beneath porcelain is essential. A void under a 600 by 600 Porcelanosa tile can drum, then crack, after repeated heat cycles expand and contract the adhesive bed.

The mat can be embedded in a thin layer of adhesive, with tiles laid over it once the surface skins. The other method is to pour 5 to 8mm of self-levelling compound over the mat and tile onto that surface the next day. Levelling compound gives a flatter bed for large-format porcelain and fully encapsulates the heating element, which protects it from the trowel during tiling. It adds a day to the programme. Above 450mm tile size, that extra day usually reduces lippage problems.

Keep the cold-tail joint flat on the floor. This is the thicker splice where the heating wire meets the supply cable, and it needs to be buried in adhesive or compound. It should never be left in the void of the thermostat box or bent sharply. Place it at the edge of the heated area, pointing toward the wall that holds the thermostat.

Take the third resistance reading after the mat is fully bedded. Use the same meter on the same conductors and compare the result with the value written down from the box label. A stable value shows that the element survived the trowel work.

Grout colour and visible lippage

Dark grout against light Porcelanosa makes lippage more visible as a heated floor bed moves through heat cycles. A mid-grey flexible grout hides more and tolerates thermal movement better than a rigid white grout.

Thermostat wiring and first heat-up

The Daikin thermostat needs permanent live, neutral, earth, the two cold-tail conductors from the mat, and the floor probe. The supply for an electric underfloor mat is a fixed connection on its own protected circuit, fed through a residual current device, because the mat is a heating load in a wet or potentially wet room. The earth screen in the mat, the metallic braid running through the element, must connect to the circuit earth at the thermostat and be confirmed continuous with the meter.

The thermostat sets a maximum floor temperature, often capped around 27 to 29 degrees for comfort and to protect tile adhesive and any timber below. That cap only represents floor temperature when the probe sits inside its conduit between the heating runs. A missing probe, or one sitting above an element, makes the limit unreliable: the system may underheat, or it may run hot enough to stress the bed.

Leave the heating off until the adhesive and grout have cured fully. Cementitious adhesive manufacturers require a slow, unheated cure, commonly seven days and sometimes longer in a cold room, before current passes through the mat. Early switching to check warmth can cook a fresh adhesive bed and leave hollow tiles by month two. During commissioning, raise the setpoint by a few degrees a day so the screed and tile expand together.

If the probe fails in five years, the conduit gives it a service path as long as the bend was gentle and the tube stayed clear. A damaged heating element has no comparable route out once porcelain and grout are locked above it. That imbalance stays hidden below an otherwise clean tiled floor.
