Build a Loft Storage Deck With Loft Legs in 8 Steps for 50% More Attic Space

Why the insulation depth decides the build-up

A raised loft deck starts with the 270mm figure used in Building Regulations guidance for mineral wool insulation in a UK home. Many houses built before the 1980s have ceiling joists only 100mm deep, so a board fixed straight across the joists presses the insulation down hard over the covered area. With 18mm chipboard flooring laid directly on top, roughly two thirds of the insulation is flattened and its thermal performance drops where the deck sits.

The Energy Saving Trust gives a typical detached-house heating saving of roughly 25 to 35 GBP a year from a full 270mm loft-insulation layer. Boarding that crushes the wool gives some of that saving back through the ceiling.

Loft Legs are moulded plastic risers from the UK firm Loft Leg. They screw to the existing joists and raise the new deck by about 175mm, enough to leave the insulation depth in place. The legs are positioned at intervals along the joists, and the manufacturer rates each one for a substantial static load. A raised timber subframe can do the same basic job, although it uses more material and takes far longer for one person to build.

Hatch size, joist condition and the first measurements

Check the loft hatch before buying boards. A standard hatch is around 562mm by 726mm, which explains the common 1220mm by 320mm tongue-and-groove loft panels sold by Wickes and B&Q. Those panels are narrow enough to pass through a tight opening on the diagonal. Full 8x4 sheets usually stay downstairs unless the hatch has been enlarged.

Next, inspect the joists with a torch. Cable runs, recessed downlight housings, staining around a chimney breast and old marks near valley gutters all affect the layout. Recessed downlights need a clearance gap or a fire-rated cover, because decking tightly above them traps heat. Mark or note cable routes so the legs land on timber and miss the services.

Then measure the intended deck and the joist centres. In many lofts the joists are set at 400mm or 600mm centres. Length multiplied by width gives the base board area, with about 10 percent added for cuts around the hatch, pipes and any water tank. A deck 3 metres by 2 metres covers 6 square metres, which is roughly 16 of the 1220mm by 320mm panels before waste.

Fixing the legs, bearers and boards

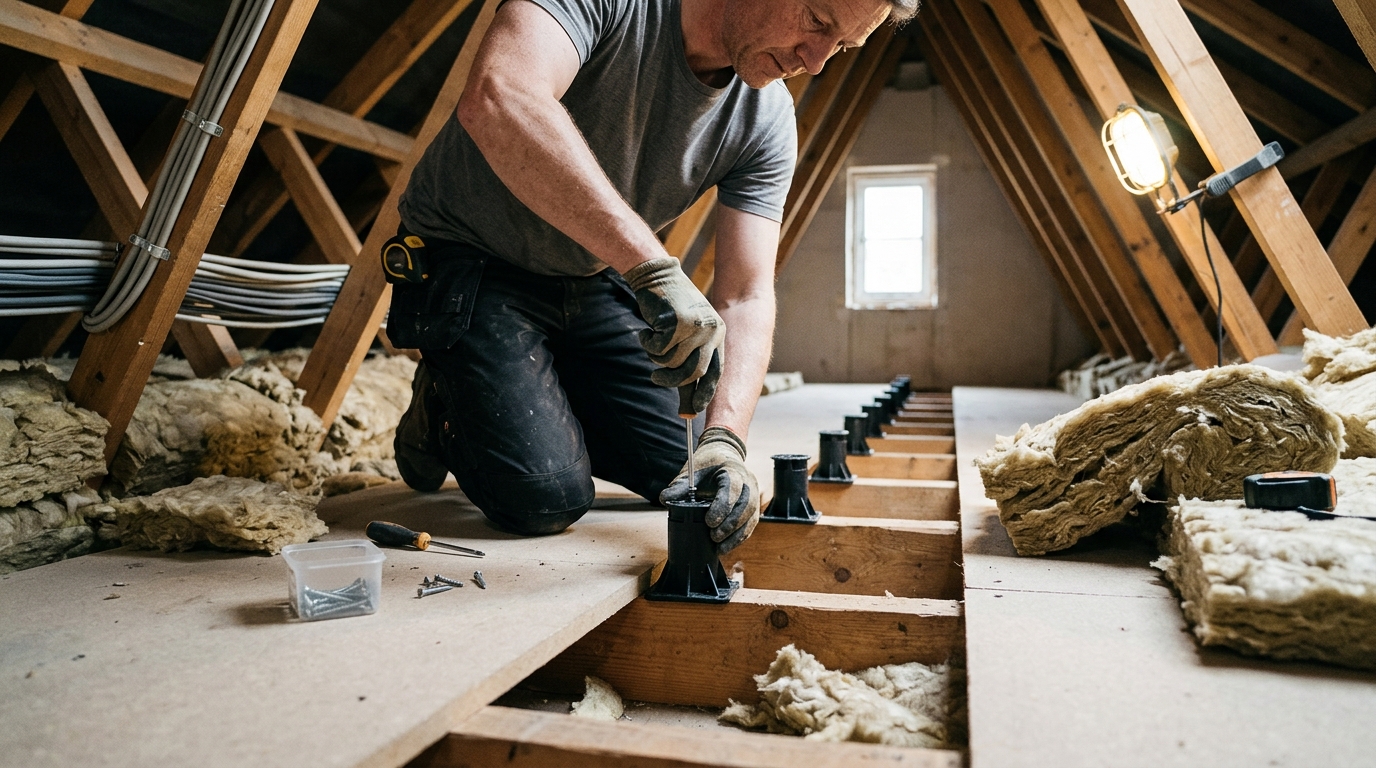

The legs screw down onto the top of each joist with the supplied wood screws or equivalent fixings, typically 50mm into the timber. Loft Leg’s guidance puts a leg roughly every 1 metre along the joist and at similar spacing across the deck. For a 6 square metre area, the total normally falls somewhere between 24 and 36 legs, depending on joist spacing and board layout.

Set the legs so board edges have support underneath. A little staggering is usually needed, because the panel joints and the joists rarely give a perfect grid from the hatch outward.

Treated 47mm by 75mm timber, often called CLS, is fixed across the tops of the legs to create bearers. The point of all this is to keep the weight off the insulation while sending it somewhere solid. Whatever you stack on the chipboard pushes down through these bearers and into the plastic risers, which carry everything back to the ceiling joists that were always meant to take the load. Use a spirit level across two or three bearers at a time. A single high bearer can be felt through the chipboard as soon as someone kneels on the finished deck.

Once the bearers are level, the panels go down tongue into groove. PVA in the joints helps reduce creaking, and each board is fixed to the bearers with 4.0mm by 50mm screws, two at every bearer crossing. Sink the screw heads just below flush so boxes slide across the surface without catching.

A cordless impact driver is noticeably quicker than a drill set up for screwdriving. On a 16-panel deck, that speed can separate an afternoon job from a long evening of swapping batteries and clearing screw heads.

Leave about 50mm between the deck and any roof valley or eaves. Air still needs to move through the loft, and tight boarding at the edges blocks the ventilation route that helps keep the timber dry. A damp loft can cost far more to put right than the small strip of storage gained at the edge.

Storage load limits

A loft deck raised on legs is intended for storage loads. Gym equipment, a water bed or dense stacks of heavy boxes ask too much of the ceiling structure below.

Those ceiling joists were sized around plasterboard ceilings and insulation. They can also take a person working carefully during installation, yet repeated heavy point loads over a small patch risk cracking the plaster underneath.

Reading the 50 percent attic-space claim

Claims about 50 percent more attic space refer to usable storage area. Cubic volume is still set by roof pitch, trusses, tanks, pipework and the shape of the loft itself.

The starting condition matters. A loft with bare joists and a few loose planks across the middle has very little safe area for boxes. With a properly raised deck on legs, the area where boxes can stand may genuinely double, so a 50 percent increase can be a cautious claim in that case.

Where a loft already had some boarding down, the headline percentage starts to mislead. A floor that was half usable before cannot gain as much in proportional terms as one that started almost empty, even if the finished decks end up identical. The honest comparison is how much usable floor you actually had against how much you finish with, not the marketing figure stamped on the box.

More floor invites more weight, and that is where the trouble usually hides. A loft floor built on shallow joists carries far less per square metre than a first floor designed for living space. Spread your boxes thinly across the whole deck and the load passes gently into the structure. Pile the same contents into one corner and you concentrate everything over a single joist, which is precisely the kind of point loading that turns up later as a crack in the ceiling below.

Tools and costs that decide the weekend

A realistic kit is modest: cordless impact driver, 25mm spade bit or hole saw for cable clearance, fine-tooth handsaw or circular saw for panel cuts, knee board to spread your weight while working, and a head torch. Loft lighting is often badly placed for the exact area being boarded.

For a 6 square metre deck, the Loft Legs might cost 60 to 90 GBP. CLS bearers add roughly 30 to 40 GBP, and tongue-and-groove panels add about 80 to 120 GBP depending on whether the moisture-resistant green-edged boards are chosen. The moisture-resistant grade is worth the extra few pounds per panel in a loft that has ever shown a damp patch, because ordinary chipboard swells after getting wet and does not recover its original shape.

Paid labour changes the total more than the screws or small fixings. Loft boarding firms usually quote by the square metre, and the legs-and-bearers method can take a tradesperson the better part of a day for a small deck once hatch widening and working around a cold water tank are included. A self-build saves that labour charge, with the trade-off being a weekend spent crouched in a cramped roof space.

Do not underestimate the first couple of boards. Getting that opening edge square to the joists, the tongue facing the right way and the first bearer line dead level eats more time than the whole rest of the deck, and any error there quietly copies itself into every board that follows. A deck that looks quick in a thirty-second product video can take several hours when each cut and bearer is being set from inside the loft.

Tanks and pipework in the deck area

Cold water tanks and boiler pipework sitting in the middle of the intended deck need space around them in the leg layout. A deck that boxes services in can turn a future repair into the removal of half the new floor. When you reach those boards, screw them down rather than gluing the tongues, and keep the fixings to two per bearer with nothing buried under a permanent run. A panel you can lift with a screwdriver and a free afternoon is worth far more than a tidy, sealed floor the day a ballcock fails over a winter weekend.
