Blum AVENTOS HK-XS: Why Lift Flaps Sag on Wall Cabinets and How the Adjuster Corrects Them

The AVENTOS HK-XS is the smallest lift system in Blum’s range, designed for wall cabinet heights between 205 mm and 600 mm. It carries a power factor calculated from cabinet height in millimetres multiplied by front weight in grams, including the handle. When a fitted flap will not hold in the open position, or when the front sits a few millimetres proud of the neighbouring cabinet at the closed edge, the installer has almost always skipped the two calibration steps that Blum documents in the fitting instruction sheet supplied inside the box.

Spring Force Is Set by One Adjuster, Not the Screw That Looks Like It

The visible screw on the front face of the lift arm is not the tension control. That screw governs the closing angle. The tension control is the ridged wheel or the marked adjuster on the body of the mechanism, and it moves the spring pack between its minimum and maximum settings.

A flap sags open or refuses to stay raised when the spring force is set below the power factor the cabinet actually requires. The HK-XS covers a defined power factor band per mechanism variant, and Blum prints that band on the arm. If the calculated value for a 500 mm high front weighing 3.2 kg falls near the top of the band, the adjuster must sit near maximum. Installers frequently leave it at the mid position it shipped in, which suits a lighter front and leaves a heavier one under-supported.

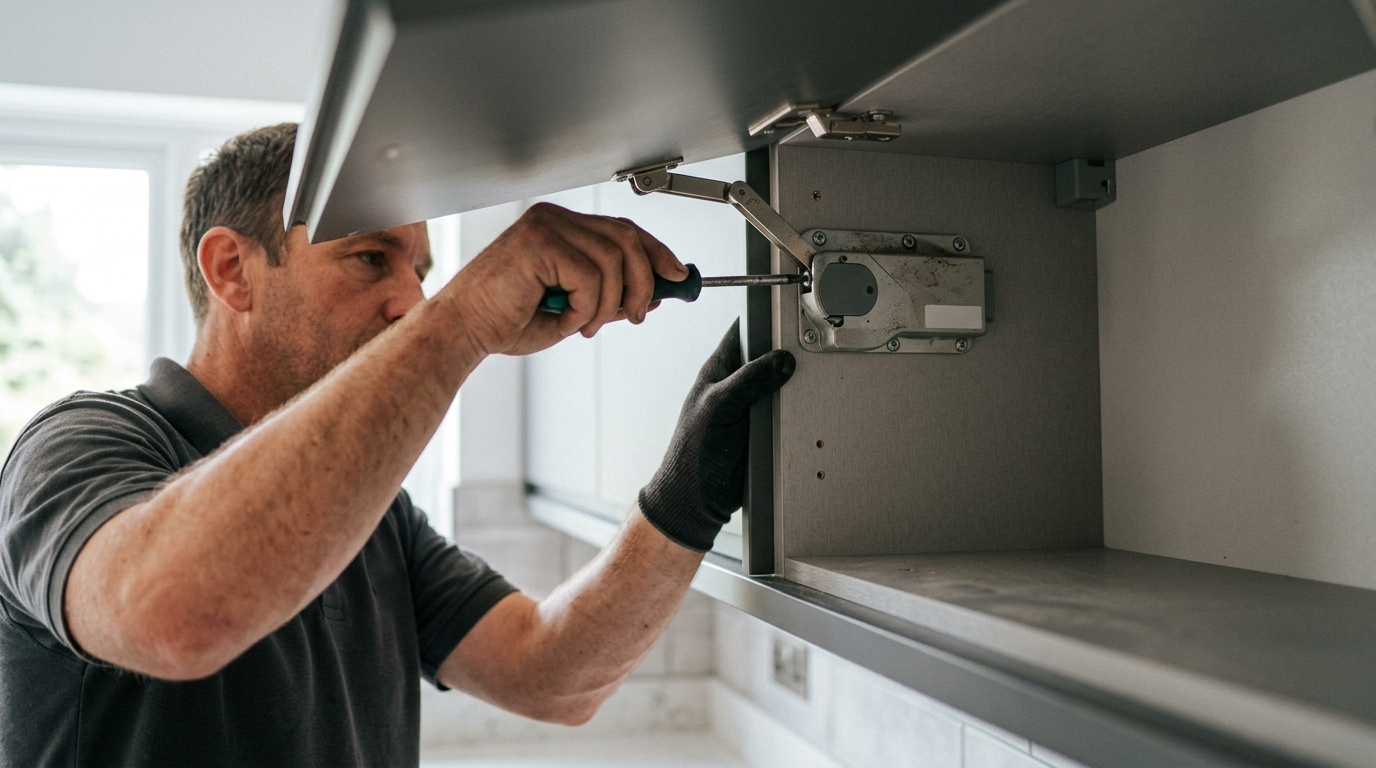

Turn the tension adjuster toward the plus symbol in small increments. After each turn, raise the flap to the horizontal and release it. When the front holds without creeping downward and returns to fully open with a light push, the force matches the load. Over-tensioning produces the opposite fault: the flap flies up and will not stay part-open, which strains the arm bearing over months of use.

The Two-Screw Front Height Correction

A misaligned closed edge is a separate problem from sag, and it uses a different pair of adjusters located on the mounting plates where the arms meet the front.

Each arm carries a front fixing bracket with a height adjustment screw and a depth adjustment screw. The height screw moves the front up or down by roughly plus or minus 2 mm against the cabinet carcass. Turn both left and right height screws by the same amount so the front stays parallel; adjusting one alone tilts the flap and opens a wedge-shaped gap at the top edge. The depth screw pulls the front closer to the carcass or pushes it away, correcting a proud face against the adjacent door line.

Work with the flap closed and check the reveal gap with a feeler or a folded 3 mm strip of card down the closing edge. Blum specifies a consistent reveal around the front, and an uneven gap almost always traces back to one bracket sitting on a different screw depth from its partner. Loosen, align, retighten, then cycle the flap ten times before rechecking, because the mechanism settles slightly after the first few operations.

Check This First

Confirm both lift arms clicked fully onto their mounting plates. A half-seated arm mimics a tension fault exactly, and no amount of spring adjustment will fix it.

When the Sag Returns After a Week

A flap that holds on the day of fitting and drifts down again within a week points to something the tension adjuster cannot cure. The most common cause is a front heavier than the mechanism was specified for, which happens when a substitute door is fitted during a home renovation and nobody recalculates the power factor.

The HK-XS has a hard upper limit. A 600 mm high front in 18 mm MDF with a stone-effect laminate can exceed 4 kg once the handle and any applied moulding are added. If the calculated power factor lands above the band printed on the arm, the correct part is the standard AVENTOS HK-S or HK-top, not a maximally tensioned HK-XS. Running the small mechanism at its ceiling shortens the spring’s working life and reintroduces sag as the pack relaxes.

A second cause is temperature. Cabinets fitted near an oven or above a hob run warmer, and spring steel loses a fraction of its force as it heats through a cooking session. The drift is small but visible on a marginally loaded front. Setting the tension one increment above the point of neutral hold gives the margin that absorbs this without over-driving the arm when the cabinet is cold.

The third cause is the front fixing bracket working loose. Vibration from a slamming adjacent drawer, or from the flap being pulled shut by hand instead of on its soft-close, backs the bracket screws out over dozens of cycles. A drop of medium-strength threadlocker on the front fixing screws, applied at fitting, removes this failure mode entirely. Check the bracket screws before assuming the spring is at fault, because a loose bracket lets the whole front drop by the play in the fixing, which reads as sag but is pure mechanical slack.

Where the flap is a large single front, the paired-arm geometry matters more than on a small one. Two arms out of sync fight each other, and the front twists as it lifts. Both arms must carry the same tension setting and the same front-height screw depth, checked with the flap horizontal and sighted along the top edge for twist.

A Worked Power Factor Example

Take a wall cabinet 480 mm high with a front weighing 2.6 kg including a 180 g bar handle. Blum’s power factor is derived from cabinet height and total front weight, and for this combination the value sits in the middle of the HK-XS band. The tension adjuster belongs near its centre position, and the flap should hold at horizontal with the spring pack barely working.

Now raise the front weight to 3.6 kg by switching to a thicker painted door during the same fit. Height is unchanged at 480 mm, but the added kilogram pushes the power factor toward the top of the band. The tension adjuster now needs to sit near maximum, and the closed-edge reveal must be rechecked because the heavier front sags the closing gap by a fraction of a millimetre under its own mass. This is the exact scenario that produces a flap holding fine on the sample door and failing on the final one.

The Soft-Close Detail Most Installers Skip

The integrated BLUMOTION damping on the HK-XS has no separate adjustment, but it depends on the closing angle screw being set correctly. If the flap slams the last few millimetres, the closing angle is wrong and the damper never engages across its full stroke.

Set the closing angle so the front meets the carcass square, then let the mechanism draw it the final distance. A flap that bounces open a few millimetres after closing has its closing angle set too shallow, and the fix is the front-face screw the tension novice mistook for the spring control at the start of this job. Cycle it, watch where it stops, and adjust in quarter turns until the front seats flat and the damping carries the last of the movement.

What remains unclear on many jobs is whether a recurring sag is the mechanism relaxing or the front itself gaining weight from a second coat of paint applied after fitting. Weighing the finished front before selecting the lift system is the one check that removes the ambiguity, and it is the step most often left out.
