90 Kilograms of Load Carried by Blum Movento Runners across a 650-Millimetre Drawer

Where the 90 kilograms comes from

The Movento 760H is a concealed, full-extension runner mounted underneath the drawer base, leaving the drawer sides clear of visible runner hardware. Blum rates the standard 760H at 60 kg dynamic load and sells a reinforced version carrying 90 kg, with both figures quoted at a 650 mm nominal length. Dynamic load covers the drawer while it is being opened and closed in normal use, and the stated figure includes the weight of the drawer box together with its contents.

The load is spread through a synchronised roller carriage running in a hardened steel profile. As the drawer extends, the engaged length of the runner shares the force along the profile. At full extension the cantilever moment reaches its peak, so the front rollers carry the greatest force.

That is where the reinforced version differs physically. It uses a thicker steel section and a longer bearing cage, giving the runner more bearing support under high load. A runner specified at 650 mm behaves differently from the same family at 550 mm or 750 mm, so the depth printed alongside the load figure is part of the specification.

Legrabox capacity reads differently

Blum publishes the Legrabox system at up to 70 kg for most standard drawer configurations, with a 40 kg option for lighter cabinetry. Legrabox is a steel-sided drawer system with the runner integrated into the box side, so the rating covers the whole assembly, including the metal drawer sides. Movento is a runner-only product fitted to a timber or panel drawer box built separately by the joiner, so its rating describes the runner as a component.

Depth and use decide the fair comparison. A 500 mm Legrabox drawer loaded with crockery in a base cabinet rarely approaches 70 kg. A 650 mm pan drawer filled with cast iron can climb past 50 kg quickly. The reinforced Movento runner gives useful headroom in that situation.

Legrabox has a separate advantage in assembly speed and dimensional consistency. The system fixes the box height and internal width, reducing variation between drawer boxes.

Both systems use the Blumotion soft-close mechanism. This is a fluid damper that engages during the final travel of the drawer. On a 90 kg drawer it has to absorb far more kinetic energy than it would on a 15 kg cutlery tray, so Blum matches the damper strength to the runner rating. A light damper fitted to a reinforced runner can still allow bounce-back at the end of travel.

Under-sink bin carriers lose depth first

A nominal 650 mm cabinet depth is often reduced under a sink because the waste trap, water supply isolators, and sometimes a hot-water pipe occupy the rear of the cabinet, leaving usable depth closer to 480 to 520 mm. Pull-out waste systems such as Blum or Hailo bin frames are designed to sit forward of the trap, so under-sink bin carriers are commonly ordered with shorter runner lengths than the neighbouring base units. Two 30 litre bins full of household waste may weigh 20 to 30 kg combined, inside a 40 kg runner rating, while clearance remains the main engineering challenge: a door-mounted bin frame swings with the door and needs a hinge that carries the frame weight without sagging, and a runner-mounted bin may need a base cutout or stepped shelf to clear the trap, making the trap position the measurement most likely to force a return.

Kesseböhmer larder frames carry the load through the carcass

The Kesseböhmer TANDEM and DISPENSA larder systems use a full-height frame anchored at the top and bottom of the cabinet. Baskets or trays run on lateral pull-out arms, and the load is distributed across the height of the frame.

A DISPENSA unit can hold well over 100 kg of tinned and dry goods across five or six tiers. Each tier is rated individually, commonly around 20 to 25 kg per basket, and the vertical frame transfers the accumulated load into the carcass through the top and bottom fixings.

The load path differs sharply from a base drawer. In a Movento drawer, the whole load hangs from two runners fixed to the cabinet sides at drawer height. In a larder frame, the force travels vertically through the frame, and the top anchor is critical because it stops the loaded frame tipping forward as it extends.

Kesseböhmer frames use a telescopic centre-mount action. With a fully loaded frame at full extension, the pull-out force is high enough that the cabinet needs at least 18 mm board and screw fixing at the top rail.

Height range also matters. A DISPENSA fits cabinets from roughly 1900 mm to 2140 mm internal height, and tier spacing is set during installation. Once the baskets are loaded, the spacing is effectively fixed, because unloading a full larder to move one tier by 40 mm is the kind of job that tends to be postponed indefinitely.

A pan drawer calculation

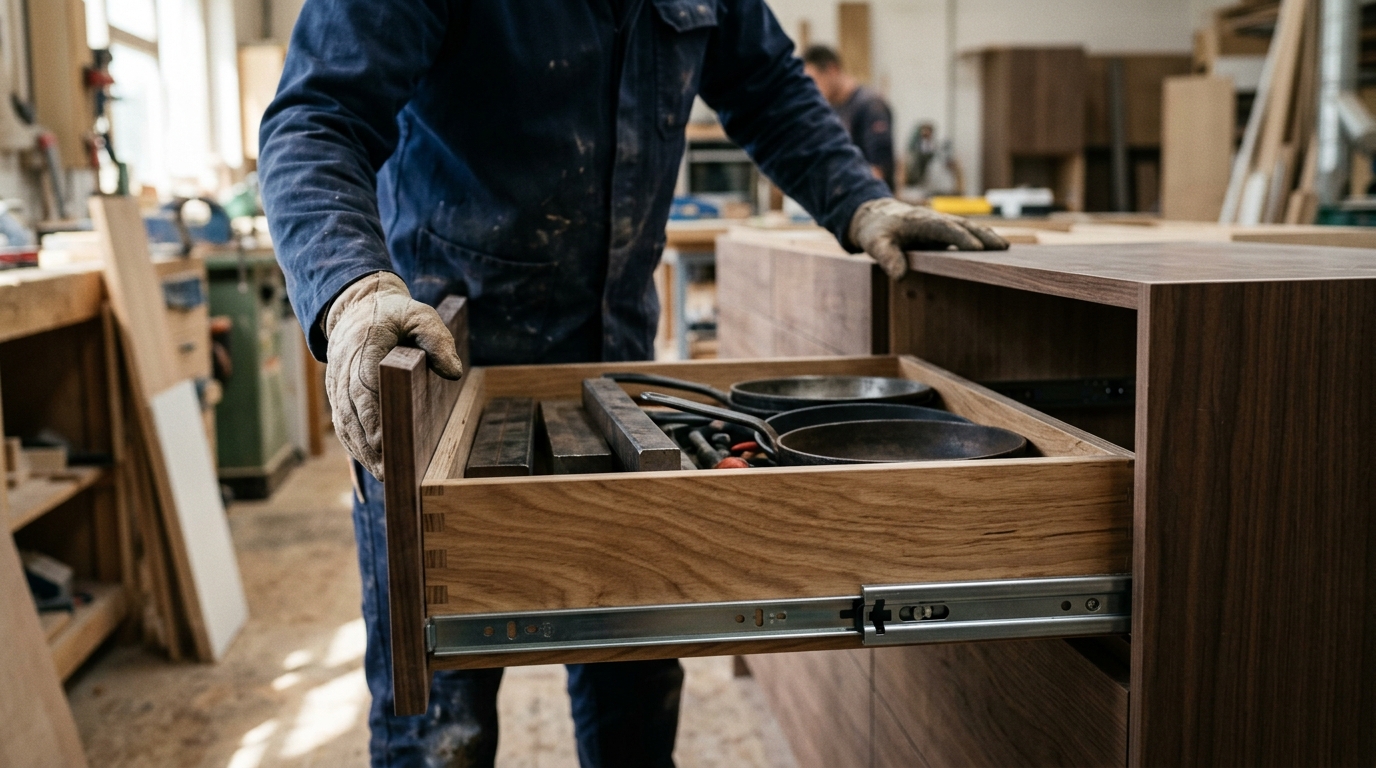

Take a 900 mm wide base cabinet, 650 mm deep, planned for cast-iron pans, a Dutch oven, and lids.

A 28 cm cast-iron skillet weighs around 3 kg. A 24 cm casserole with lid weighs around 4.5 kg. A full pan set with a griddle plate can reach 18 to 22 kg.

The drawer box adds its own mass. A solid oak drawer box at 900 mm width, using 16 mm walls and a 12 mm base, weighs roughly 7 to 9 kg.

That puts the total near 30 kg. The load sits comfortably inside the 60 kg rating of the standard Movento 760H.

The 90 kg reinforced version becomes useful when the same cabinet also stores a stand mixer or a stack of stoneware bakeware, pushing the loaded figure past 45 to 50 kg. At that level, repeated daily opening starts to matter.

Dynamic ratings assume cycling. Blum tests runners to 100,000 open-close cycles at rated load. A drawer operating at half its rating sees less wear per cycle and keeps its glide for longer.

The fixing detail can decide the feel of the drawer. The Movento locking device clips the runner front to the drawer box, and a rear socket sets the depth. If the rear socket is poorly seated, the front rollers take a share of load outside their design. A drawer that feels notchy under a 40 kg load on a 60 kg runner is almost always showing a fixing fault.

Alcove shelf brackets depend on the wall behind them

Fitted alcove shelving depends on the material that receives the screws. A concealed floating-shelf bracket rated at 25 kg per bracket assumes the fixing reaches solid masonry. In a Victorian alcove the reveal is often solid brick, where a resin-anchored M10 stud can carry the rated load.

In a stud partition, the shelf has to land on timber studs. Their spacing at 400 or 600 mm centres dictates where the shelf edges can fall.

The shelf bracket works as a lever. A 300 mm deep shelf carrying books places the load centre 150 mm out from the wall. The top fixing is in tension and the lower part of the bracket is in compression, which explains why floating-shelf failures tend to pull the top fixing out first.

Doubling shelf depth to 600 mm roughly doubles the pull-out force on the top fixing for the same weight of books. Deep alcove shelves need either a deeper embedded bracket rod or a discreet support at the front edge.

Long-term substrate behaviour sits beyond the hardware rating. A resin anchor in sound engineering brick can hold its rating for decades, while the same anchor in soft lime-mortar Victorian brick can loosen as surrounding material powders under sustained load. A runner or bracket specification leaves the twenty-year behaviour of the wall outside its scope.

For a deep alcove shelf, the practical tension is concentrated at the top fixing: the bracket rating gives a number for the metalwork, while the real limit may be the material behind the plaster.
