9 Step Bamboo Root Barrier Install with Phyllostachys Nigra Over a 6-Metre Run

Why the rhizome runs shallow and what that dictates

Phyllostachys nigra is a leptomorph, or running, bamboo. Its rhizomes are the lateral spreading organs, distinct from the upright culms, and they almost always travel in the top 20 to 25 cm of soil because that band warms fastest and holds the most oxygen. New shoots emerge from nodes along these rhizomes, which is why an uncontained plant produces culms a metre or more from the original clump within two seasons.

The barrier has to intercept that horizontal travel, so its working depth follows the rhizome zone with a safety margin. A 60 cm deep HDPE panel set with 5 to 8 cm standing proud of the soil surface covers the active band and still catches the occasional deep diver. The exposed lip matters because rhizomes that hit the buried wall turn upward and ride along it; if the wall stops flush with grade they escape over the top. That single detail accounts for most barrier failures people report after four or five years.

Materials for the 6-metre run

Use high-density polyethylene of 60 cm height and at least 1.0 mm thickness; 1.2 mm or 80 mil holds its shape better in stony ground. Allow 6.6 metres of roll to give a 30 cm overlap at the join and a short return at each open end. Add a double-sided aluminium or stainless joining strip with stainless bolts, a roll of 50 mm landscaping tape, and a sharp spade plus a trenching mattock. HDPE in this grade comes off suppliers such as RootBarrier or Greenseal in 30 m rolls, so a 6.6 m offcut is the practical purchase.

The nine steps in sequence

Step 1, mark the line. Lay a hose or string along the intended 6-metre edge of the planting bed. Bamboo screens read best when the barrier sits 40 to 60 cm out from where the culms will stand, giving the clump room to fatten before it meets the wall.

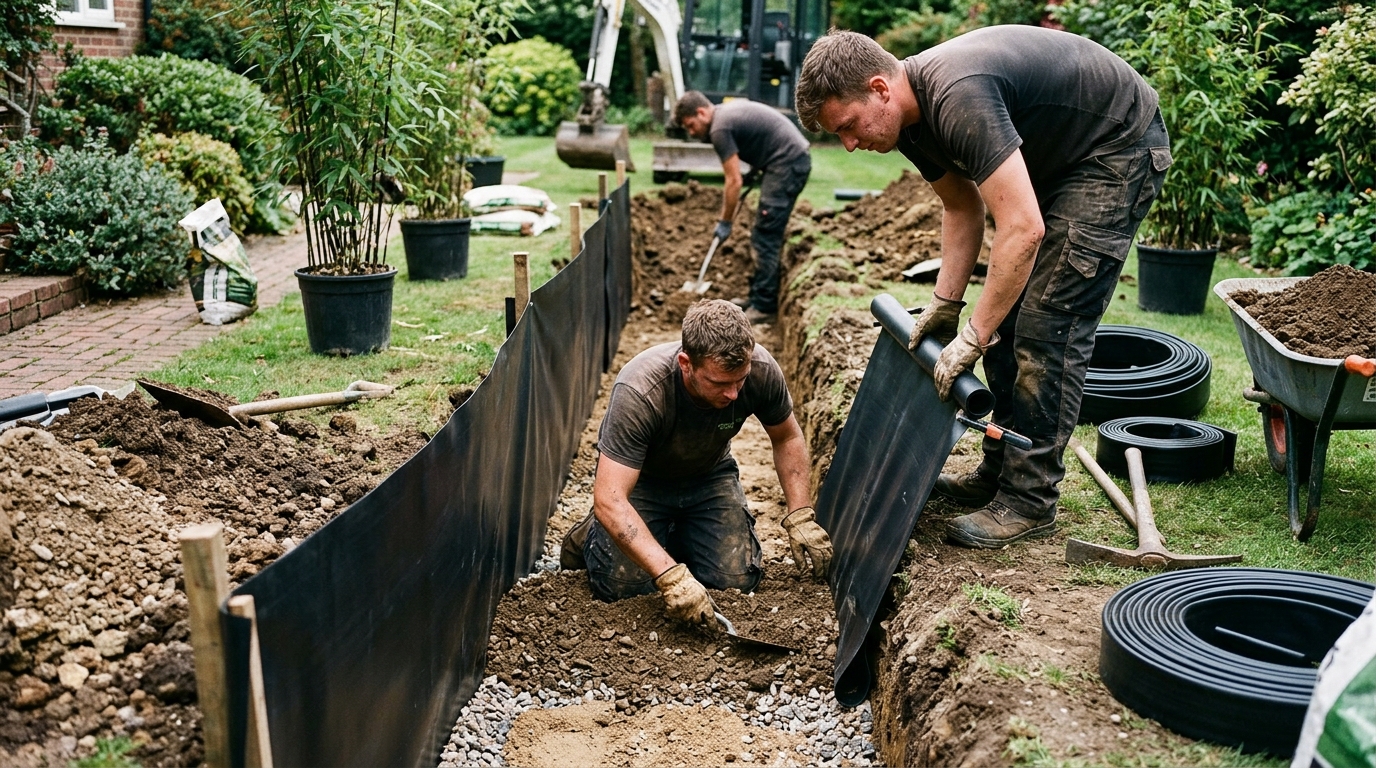

Step 2, dig the trench. Cut down 60 to 65 cm with vertical faces. The trench needs to be only as wide as the spade, around 25 cm, because the panel stands upright against one face. Keep the spoil on the bed side so backfill is close to hand.

Step 3, set the slope. Angle the barrier so the top leans 5 to 10 degrees outward, away from the bamboo. A rhizome striking an outward-leaning wall is deflected up and back toward the clump where it can be cut, instead of being guided down and under the footing.

Step 4, unroll and offer up the HDPE. Feed the panel into the trench with the join positioned at an accessible point, not at a corner. Leave 5 to 8 cm above grade along the whole run. Hold it temporarily with a few clods while you check the level.

Step 5, make the join. Overlap the two panel ends by 30 cm and clamp them between the aluminium strip, then drill and bolt at 10 cm centres with stainless fixings. A bolted strip outperforms an overlap-and-tape join, which works loose as the HDPE flexes through summer heat and winter cold.

Step 6, close the ends. Return each open end of the run inward by 30 to 45 cm, curving the panel back toward the bed. An open straight end is the first place a rhizome finds its way around the barrier, so the return turns that edge into a dead stop.

Step 7, backfill in lifts. Fill the trench in 15 cm layers, firming each with the heel before adding the next. Firming as you go keeps the panel vertical and stops it bowing under the weight of wet soil later. Check the exposed lip stays even at 5 to 8 cm the whole way along.

Step 8, plant the Phyllostachys nigra. Set the rootball so its crown sits level with the surrounding soil, 40 to 60 cm in from the wall. For a 6-metre screen, three plants from 10 litre containers spaced at 1.8 to 2 m close into a continuous wall within three to four seasons; five smaller plants close faster but cost more.

Step 9, mulch and mark the lip. Spread 5 cm of composted bark over the bed but keep it clear of the exposed barrier edge. A run of bark hiding the lip is how people forget the lip is there and let rhizomes vault it.

The one task the install does not finish

The barrier contains lateral rhizomes; it does not stop them climbing. Walk the exposed lip once a year in late summer and cut back any rhizome riding up the inside face.

A worked example for backfill and spacing

The 6-metre trench at 0.25 m wide and 0.6 m deep holds 0.9 cubic metres of soil. Most of the original spoil goes back, but the 0.25 m wide channel displaced by firming and by the rootballs usually leaves you needing 0.1 to 0.15 cubic metres of topsoil to finish flush, so one bulk bag covers it with margin.

Spacing drives how the screen reads. Three Phyllostachys nigra plants on a 6-metre run sit at 0 m, 3 m, and 6 m if you plant to the ends, or at 1 m, 3 m, and 5 m if you inset them, which suits most boundary screens because it keeps culms a clear metre off the neighbour line. The black colouring on nigra culms develops over the first one to two years after a culm emerges; the canes come up green and darken with sun exposure, so a freshly planted screen looks green for a full season before the characteristic colour appears on the older wood.

For anyone running this barrier alongside other growing structures in the same garden, the depth logic carries across. A clematis montana trained over a pergola has no spreading root organ to contain, so it needs no barrier at all, only annual tying-in of the new whippy growth after flowering. Runner beans up a hazel wigwam are annuals pulled at the end of the season, so their roots never reach the scale that forces this kind of groundwork. The 60 cm HDPE solution is specific to leptomorph bamboos and to a handful of other vigorous runners.

Drainage and the standing water trap

A continuous HDPE wall set 60 cm deep will dam subsurface water moving across a slope. On heavy clay this can pond against the uphill face and leave the bamboo crown sitting wet through winter, which Phyllostachys nigra tolerates poorly. The fix is to stop the barrier 8 to 10 cm short of the trench bottom on the downhill section, or to drill a row of 8 mm weep holes along the lowest 5 cm of the panel at 30 cm centres. Rhizomes do not navigate an 8 mm hole, so drainage is preserved without breaching containment.

On free-draining sandy or loamy beds this is rarely an issue and the panel can run full depth. The decision turns on what the trench faces show when you dig step 2: glossy, sticky walls that hold a spade print mean clay and argue for the weep holes; crumbling friable faces mean you can skip them.

What the nine steps leave open is the question of timing the first division. A contained Phyllostachys nigra fills its 6-metre bed in three to four years, then keeps thickening against the wall, and at some point the rhizome mat inside the barrier becomes dense enough that culm vigour drops. When does a screen that was installed to keep bamboo out start needing intervention to keep the bamboo itself healthy?
