9 Metres of Curtain Track Levelled with a Stabila Type 196 on a Gallery Landing

Setting one datum across a run longer than the level

A 9 metre gallery landing run is longer than any handheld level can cover in one placement. The working method is to establish one continuous datum and refer every bracket mark back to that line. The Stabila Type 196 is available in a 183 cm length, leaving seven or eight bracket positions beyond direct reference if the level is moved along the wall in stages.

Moving the level from one section to the next carries any small error forward. A consistent 0.5 mm bias at each move can become a visible fall by the far end of a 9 metre track, especially where the track is seen from below.

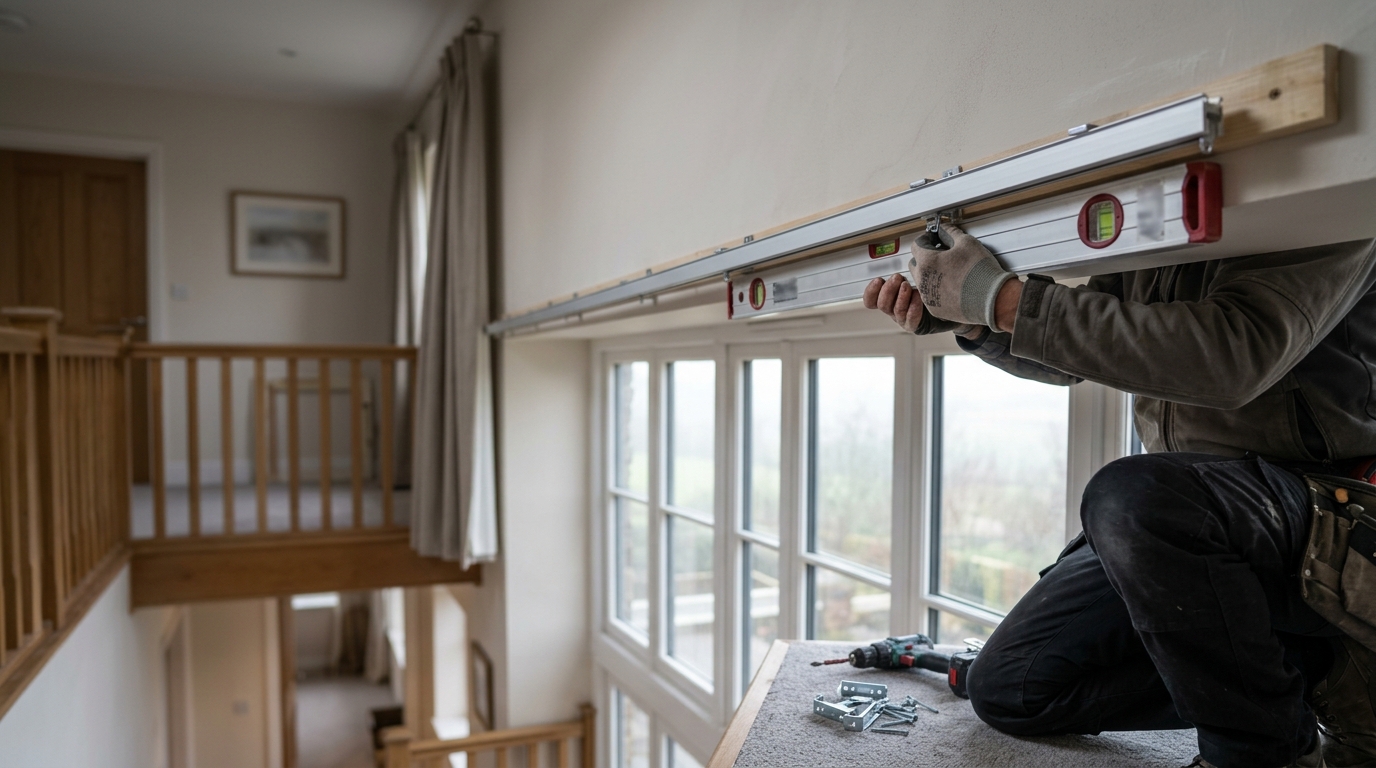

Use a chalk line or laser datum set once, then bring in the Type 196 to check that line and transfer marks down to bracket height. The Type 196 has a horizontal vial rated at roughly 0.5 mm per metre, and its milled frame stays true where cheaper box-section levels can twist. On a landing, the track is judged against the ceiling line and the handrail as much as against the vial. If the ceiling falls 6 mm over the span, a track set perfectly level can look out of line, so installers often set the track parallel to the ceiling line.

Reveal depth before ordering blinds or choosing brackets

Measure the reveal depth at three points on every opening: top, middle, and sill. Older plaster reveals commonly vary by 8 to 15 mm across one window, and a Perfect Fit blind frame has to seat against the shallowest point. Taking only the centre figure is the usual reason a Perfect Fit frame bows or refuses to clip home.

For the gallery track, the key dimension is projection from the wall. Projection controls bracket choice and decides whether the curtain stack clears the reveal returns and any window handles below. A ceiling-fixed track needs a different clearance calculation from a wall-fixed track because the fabric hangs from a different origin point.

Depth also decides whether a recess-mounted roller blind can share the opening with the curtain. If the roller tube and brackets sit too far forward, they can foul the curtain heading when both are drawn.

Write the three figures for every opening onto a sketch. A 9 metre landing often spans two or three windows that are nominally the same size, then differ by a centimetre once the plaster is measured. Ordering to the nominal size guarantees at least one blind that will not sit correctly.

Somfy Glydea loading and the fixing points behind the plaster

A motorised track changes the load on the wall. The Somfy Glydea range moves the carriers with an internal belt and motor, and a long track carrying heavy interlined curtains places real force through the brackets. At this width, a pair of lined curtains can exceed 15 kg of fabric alone.

The Glydea specification sheets give maximum load figures, and those figures have to be checked against the actual curtain weight before the track is cut. The track and motor assembly add more dead weight, with extra mass at the motor end.

Bracket spacing tightens for that reason. A hand-drawn track might use brackets every 400 to 500 mm. A Glydea run with heavy fabric often needs brackets around 300 mm apart, with additional support on both sides of the motor housing.

Every bracket has to land in something that can hold the load. On a gallery landing the wall may be a stud partition, or it may be dry-lined masonry with a cavity behind the plasterboard. A fixing that grips only 12 mm of board can pull out under the load of curtains moving on the track.

Locate studs or dabs with a detector, mark them clearly, and shift bracket positions by 20 or 30 mm where the spacing tolerance allows a fixing to hit timber or solid contact. Where no structure falls at a required bracket point, use a spreader plate or a proper cavity fixing rated to the individual bracket load.

The Glydea also needs a power source at one end and enough clearance for the motor housing to sit without touching the reveal. That dimension should be checked against the reveal depth figures already recorded.

Cabling for a hard-wired Glydea has to be planned before the track is fixed. Chasing a cable into a finished landing wall afterwards means making good along a line that is visible from the hall. A radio-controlled Glydea RTS variant removes the control cable, although it still needs a spur for power. Cut the track to length only after subtracting the motor-end and idle-end allowances from the finished drop-to-drop measurement, because an over-long cut on a 9 metre track cannot be hidden.

Roman blinds, Rufflette battens, and fold spacing

Roman blinds in the same openings run on a headrail and are weighted at the fold lines by battens held in sewn pockets. Rufflette roman blind tape or a corded system sets the fold spacing.

Batten stiffness controls how cleanly the folds stack. On a wide window, a flexible batten can sag in the middle and leave a smile-shaped bottom edge when the blind is down.

Fold spacing is calculated from the finished drop so the folds land at equal intervals and the bottom fold is not left as an awkward remainder. A blind with a 1400 mm finished drop and folds set at 200 mm gives seven equal folds; poor spacing can leave a 120 mm stub at the base that catches the eye. In the Rufflette system, the cord guides are fixed at the calculated points, and the battens sit just above each guide row.

Warm edge spacers, edge condensation, and trapped air

Condensation on a sealed unit usually appears first at the perimeter. The spacer bar between the two panes conducts heat across the cavity and chills the inner glass edge below the dew point of the room air. A conventional aluminium spacer forms the cold bridge. A warm edge glazing spacer, made from a polymer or thin stainless composite, reduces that conduction and raises the inner edge temperature by a few degrees.

Airflow matters for the blinds and curtains. A tightly fitted blind held close to the glass traps a still layer of air against the inner pane. That air cools faster and reaches dew point sooner, so condensation at the edge worsens where a Perfect Fit frame seals the reveal. Leaving a clearance gap at the head and sill lets room air circulate across the glass, which is why a blind that fits the reveal too perfectly can make an edge condensation problem more visible.

Thermal blind heat loss uses the same mechanism in reverse. An interlined or thermally backed blind slows the movement of warm room air against the cold glass, cutting convective loss. The still-air layer that saves heat also holds moisture against the pane. The two effects are inseparable, and an aluminium-spacer unit will often show more morning condensation with the same blind than a warm edge unit.

Installation order on the landing

The datum line goes up first. The Glydea track and fixings follow while the wall is open to work on and before any blind frame narrows the space around the reveal. Reveal-mounted roller blinds and roman blinds go in after the track, because their brackets can be set against the finished track height.

Power and control for the motor are confirmed live before the curtains are hung. If a fault appears after 15 kg of fabric is loaded, the track has to be stripped back. The curtains load last, followed by the Glydea limit-setting run so the motor learns the open and closed positions against the actual carrier travel.

The remaining judgement is visual alignment on the landing. A track can follow the vial and still look wrong against a ceiling that has already drifted by 6 or 8 mm over the span. That choice remains outside the reading on the vial.
