8 Step Drystone Wall Repair with Yorkshire Gritstone Over a 4-Metre Section

Why the gap opened

Hearting settles first. The small rubble packed between the two faces works downward and sideways over decades, leaving through-stones with less bearing and face stones with less support. Once the core has migrated far enough, a short bulge can become a 4-metre breach.

Yorkshire gritstone makes the failure heavier and less tidy to rebuild. The stone is dense, often 2,400 to 2,600 kilograms per cubic metre, and its sedimentary beds give it long, flat splits and irregular edges. A wall made from it carries more weight per face stone than a Cotswold limestone wall of the same height. When the hearting fails, the collapse can run along the wall before it drops.

Before stone moves, photograph the standing ends on both sides of the gap. The batter, the inward lean of each face from base to top, is the dimension that has to be followed. On a typical Dales boundary wall, the batter is about 1 in 6, so the wall narrows roughly 150 millimetres in height for every 900 millimetres of rise. Measure both standing ends with a spirit level and a tape. Old walls drift, and the two ends rarely give the same answer.

Steps 1 and 2: take back the ends and sort the fall

Clear the fallen gritstone by hand. Pull the standing ends back to sound, well-bedded courses, including any leaning stones that still appear to be holding. In many repairs, that means removing 300 to 450 millimetres of wall on each side before reaching stone that sits without rocking.

Sorting pays for itself once the wall starts rising. Lay the stone out in four rough groups within arm’s reach of the breach: large foundation stones, face stones with one good flat side, hearting, and the long throughs. Gritstone throughs are heavy, often 18 to 25 kilograms each, so find them early and set them aside before building begins.

A 4-metre repair on a wall 1.4 metres high needs around eight to ten throughs spaced along the run. Keep the best long stones visible. The work slows badly when the next course is ready and the tying stones are still buried under rubble.

Step 3: reset the footings on firm ground

Strip turf and topsoil from the gap until firm subsoil is exposed. Set the largest stones here, flat side up, across the full width of the wall base. On a 1.4-metre wall, that base is typically 550 to 600 millimetres wide.

Bed each footing stone so it stays still under a boot. This course will disappear in the finished wall, so bearing matters more than appearance. Work the new footings tight against the old footings at each standing end, creating a continuous base through the repair.

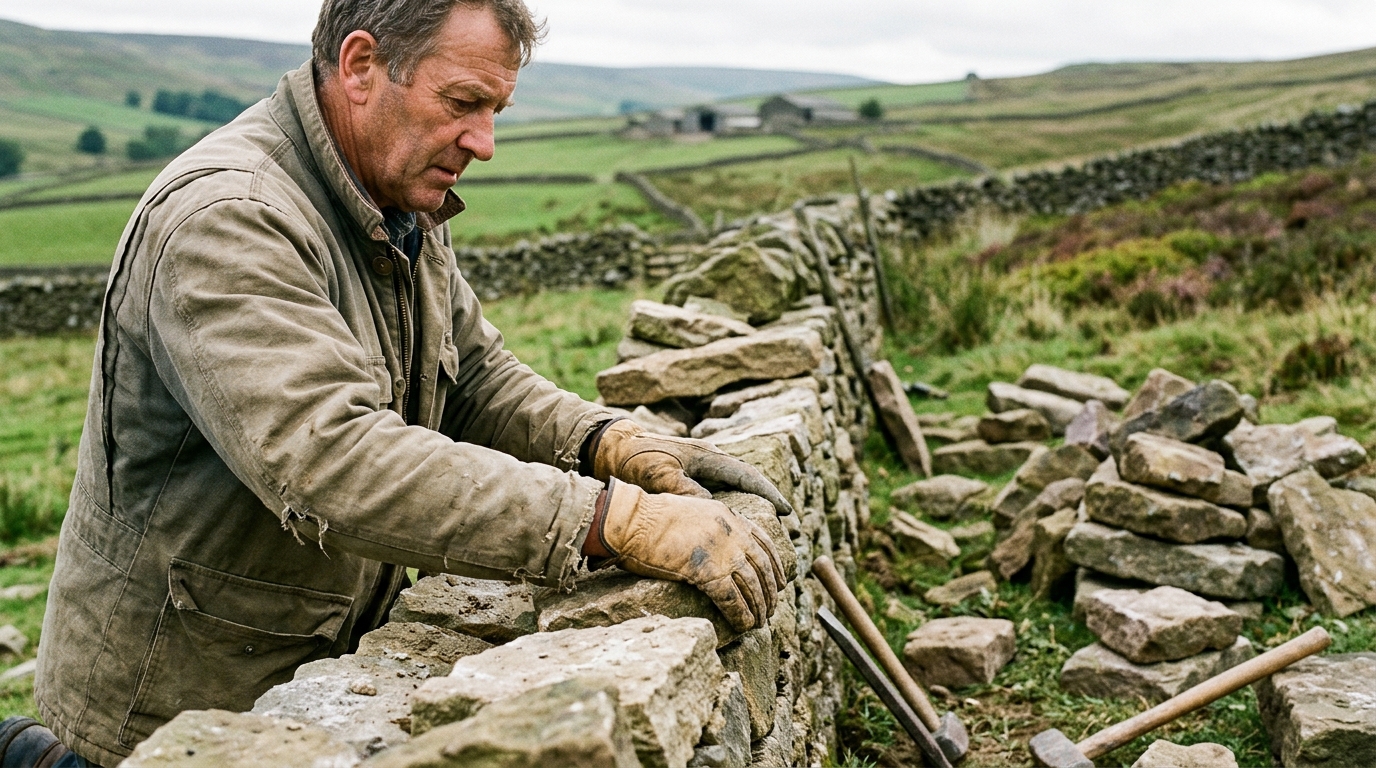

Steps 4 and 5: bring up both faces to the batter

Drive a stout stake at each standing end and run two taut lines, one for each face, set to the batter already measured. Many wallers in the Yorkshire Dales use A-frames, simple timber batter frames, because the frame holds the inward angle as the courses rise. Set the frames at the ends and pull a line between them at the current course height, lifting it as the wall grows.

Place face stones with their longest dimension running into the wall. That depth gives the face grip on the core. A stone laid lengthwise along the face, known as a tracer, looks settled from the outside and adds little hold.

Each face stone should tilt very slightly outward, so rain sheds off the wall face. Break vertical joints as the courses rise. On Dales walls the saying is to cross the joint, one over two, keeping any running joint to two courses at most.

The two faces should climb together. Raising one skin far ahead of the other leaves too much unsupported work and makes hearting harder to pack properly. With gritstone, choose broad bedded faces where the sedimentary split gives a flat seat, then use smaller angular pieces to close awkward pockets around them.

Step 6: pack the hearting course by course

Fill the space between the faces after each course. Pack small stone tight by hand until nothing rattles and a finger cannot find an open void. Loose hearting caused the original failure, so the core has to be built as carefully as the visible faces.

The hearting performs structural work. It locks the two faces against each other and checks their spread. On gritstone walls, much of it comes from flat split offcuts made while dressing face stones. Those offcuts bed flatter than the rounded rubble common in limestone walls.

Step 7: set the throughstones at mid-height

At roughly half the wall height, around 700 millimetres up on a 1.4-metre wall, lay the throughstones. They span the full width of the wall and tie both faces into one structure. Along a 4-metre run, space them about every 900 millimetres to a metre.

Let each through project very slightly beyond both faces. That is a Dales habit that helps rain drip clear of the wall below. Set every through on a level bed and pack hearting hard against its underside, giving it bearing along its whole length. A wall short of throughs may stand for a season and then bow the following winter as frost works the two skins apart.

Step 8: cope the top

Finish with the coping stones, the upright capstones along the head of the wall. On Yorkshire field walls they are usually placed on edge, either leaning in one direction or set vertical and packed tight. The aim is a head too firm for a sheep rubbing against it to lift a stone.

Copes add the weight that compresses everything below them. A wall can feel loose until the cope goes on, then suddenly read as a solid piece of work. Pack the stones hard against each other. A loose cope is vulnerable to a crow or a gale, and the gap left behind admits water into the wall head.

Tools for the repair

A waller’s hammer, a lump hammer of around 1.1 kilograms, and a good pair of gloves cover most of the work. A pinch bar earns its place when footing stones need lifting into a bed and fingers need room to stay clear.

What the rebuilt section shows

Built this way, the repaired section should outlast the person who built it. Dated lintels in surviving Pennine walls confirm sections standing well past 150 years.

The honest difficulty sits where new work meets old. A 4-metre repair built tight against two drifted ends will show a visible join, because the batter copied from the standing wall already carries another waller’s eye from a century or more ago. The visible join is part of the finished repair because old lean and new bearing have to meet in the same short run.
