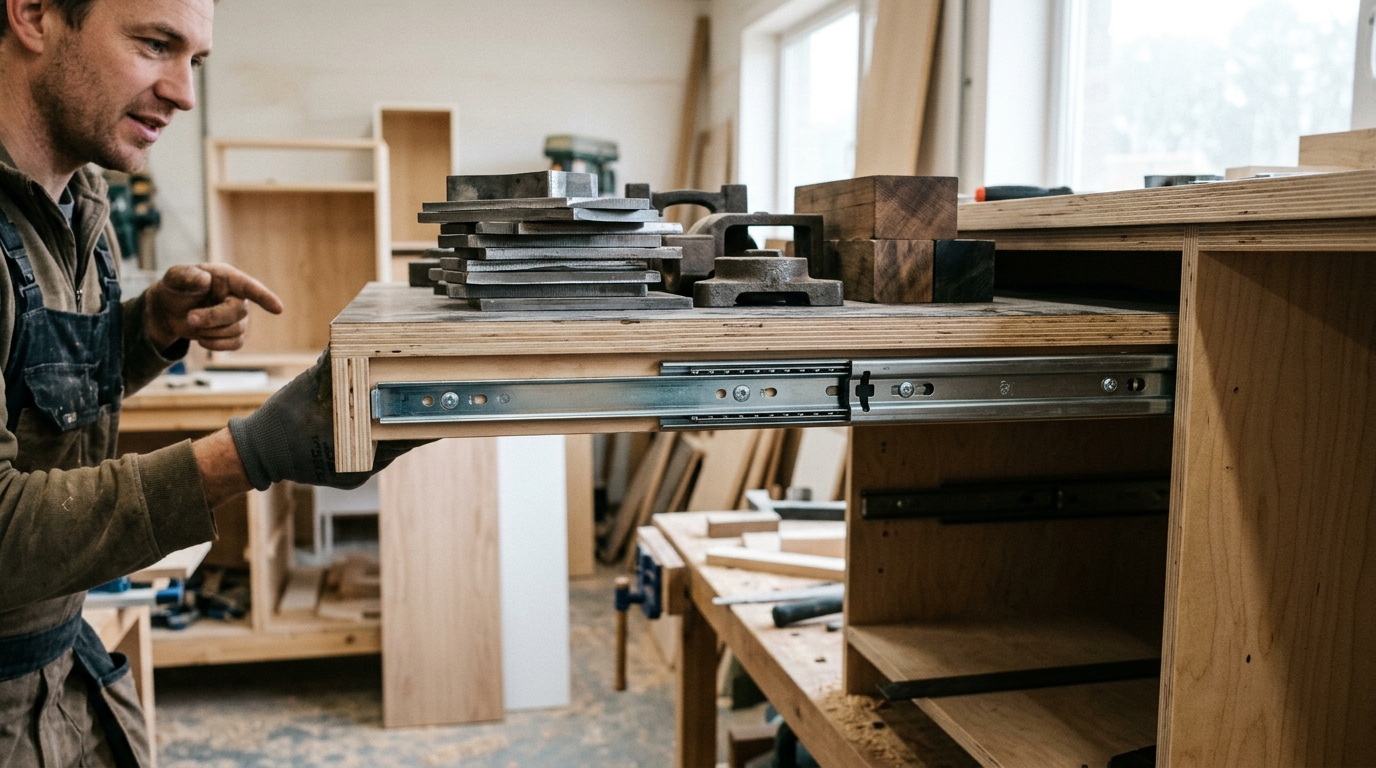

60 Kilograms of Load Held by Accuride 3832 Runners under a Pull-Out Worktop

Accuride publishes a 60 kg dynamic load for a pair of 3832 runners at full extension on a 500 mm slide. The figure applies to the pair as a set. A single runner does not become a separate 60 kg support, and the rating belongs to the ball-bearing carriage travelling through its full stroke.

A pull-out worktop changes the geometry. The load sits above the extended member, often forward of the cabinet face, so the moment arm grows as the surface comes out. The quoted rating describes a runner pair at the cabinet edge under the maker’s test conditions; a work surface with weight on its leading edge creates a different case.

Because the 3832 is a side-mount runner, vertical load passes through screws into the drawer side and the cabinet side. It is not carried by a base plate. The 500 mm version is one length within a range running from roughly 250 mm to 700 mm. Longer slides carry lower ratings because the bearings see more leverage as the extension increases.

Why the front bearing carries the argument

Pull a worktop out 400 mm and put a stand mixer on the front edge. The runner may still have a 60 kg published vertical capacity, yet the force has moved away from an even distribution along the carriage. It bunches toward the front bearing pack and applies a tipping moment that tries to lift the rear of the drawer member out of the cabinet member.

Slide makers, including Accuride, test with a centred, evenly distributed load over repeated cycles. A point load on the leading edge of a worktop falls outside that assumption. In practice, a 3832 that feels settled with 55 kg of files in a filing drawer may turn notchy and show visible deflection with 25 kg placed at the tip of a 450 mm pull-out.

To resolve this, shorten the effective overhang, add a synchronised runner pair with an anti-rack bar, or move to a bottom-mounted system where a cabinet-fixed base takes the moment. On a worktop that extends to 500 mm and carries appliances, many joiners specify a runner rated above 80 kg so the working load stays within the straighter part of the deflection curve.

The location of the fixing holes matters as much as the catalogue number. The front cabinet-side screws receive the withdrawal force created by the tipping moment. Shear capacity in the side panel helps with a normal drawer load, while pull-out resistance at the front fixing governs how a cantilevered surface behaves.

A long, shallow worktop also racks when the user pulls from one side. The slide pair then tries to move unevenly, and one runner reaches its load peak before the other. Synchronised hardware reduces that twist by forcing both sides to travel together.

Blum Legrabox changes the load path

Blum Legrabox is a box system, so the drawer sides are steel and the load feeds into a Blumotion carriage referenced from the bottom and side. Legrabox pure and Legrabox free offer 40 kg and 70 kg dynamic ratings depending on runner choice. The 70 kg tandem runner sits under the box base rather than beside it.

That geometry suits a pull-out worktop because a base-referenced runner resists the tipping moment through a wider vertical stance. A leading-edge point load produces less rack. The extra structure takes space: Legrabox requires its own side height and gap tolerances, and a retrofit into a carcass drilled on 32 mm system holes assumes the cabinet already follows the Blum drilling pattern.

A pair of 500 mm Accuride 3832 runners costs well below a Legrabox runner set with sides and front fixing brackets. For one pull-out worktop, the Accuride route is cheaper to specify. Across a run of drawers, Legrabox earns its premium through synchronised closing action, soft close, consistent gaps, and tool-free front adjustment.

Corner pull-outs use arms and base rails

A corner unit answers a separate mechanical problem. A Le Mans or magic corner mechanism carries weight on a swing arm and a base rail, with typical shelf ratings of 25 kg to 30 kg per shelf.

That capacity comes from the arm geometry. Ball-bearing drawer-slide figures do not describe the shelf load in those mechanisms.

Kessebohmer larder frames load the cabinet vertically

A Kessebohmer larder pull-out reverses the worktop case. The load is held in five or six baskets stacked in a vertical frame, and the column extends on heavy runners fixed at the top and bottom of the cabinet. Kessebohmer rates Dispensa and Convoy frames up to 80 kg total, distributed across the baskets.

Here the load stays close to the runner axis. The moment arm is short, and deflection remains small even with the frame fully extended. The cabinet fixing becomes the limiting part of the assembly. The top rail screws into the carcass top; with 15 mm melamine faced chipboard, the pull-out force during the last 50 mm of travel can start to pull at those screws. Joiners fitting a full larder frame commonly use 18 mm carcass material or add a hardwood fixing batten behind the top rail.

Basket loading also sets a practical ceiling. Kessebohmer gives a per-basket limit, and tinned goods stacked two deep in one wire basket can pass that figure while the total frame remains under 80 kg. In that case the basket weld reaches its limit before the runner does. Packing a full larder frame is governed by the per-basket figure as much as by the total frame rating.

Loft eaves storage and short runners

Eaves cupboards force short runners into deep spaces. Usable depth under a sloping roof can reach 900 mm or more, while the opening at the eaves may be only 350 mm high. A full-extension runner long enough to reach the back can need more drawer height than the side allows, so over-extension or full-extension telescopic runners in the 450 mm to 600 mm range often get paired with a drawer that stops short of the true back wall.

The load case is gentler than a worktop because eaves drawers usually carry seasonal items, luggage, or textiles. A 25 kg to 35 kg pair rating covers most real loads, and a standard 45 mm ball-bearing runner handles that use.

The mounting surface creates the difficulty. Eaves carcasses are often built against a stud wall with a sloping ceiling, and the runner still needs a true vertical side to screw to. A packed-out plywood side, at least 12 mm thick, gives the screws solid material and keeps the runner square when the roof line is angled.

Deep eaves drawers rack more than shallow ones because the pull handle sits far from the runner line. A synchronised runner or a pair matched for simultaneous release reduces twist. Where the drawer uses the full 900 mm depth, a bottom-fixed runner spreads load across the base and limits front dip when the drawer is fully loaded.

Cam locks, dowels and front fixings

Flat-pack carcasses rely on cam lock fixings and 8 mm dowels. That joint sets the ceiling for any runner attached to the side panel. A 60 kg 3832 pair fixed to a side panel that is only cam-locked to the carcass top sends its load, including the tipping moment from a pull-out worktop, into a cam gripping perhaps 15 mm of chipboard.

Cyclic pull-out loads can loosen the cam. The visible symptom is a drawer front that starts to drop after months of use, with carcass-joint creep causing the movement. A corner bracket or threaded insert changes the fixing behaviour. A threaded insert driven into the panel edge accepts a machine screw, grips more material than a woodscrew in raw chipboard, and survives repeated disassembly.

For a pull-out worktop, the runner screws need the closest attention at the front of the cabinet. The 3832 mounts with woodscrews into the drawer side and cabinet side. In 18 mm chipboard, those screws hold well in shear, which is the direction of a normal drawer load. They are weaker in withdrawal, the direction created by the tipping moment at the front bearing. Replacing the front two cabinet-side screws with bolts through the panel into captive nuts removes that withdrawal weakness at the point of highest moment.

The remaining blind spot is the force at the front fixing when a loaded surface is held fully out.
