8 Step Garden Pond Liner Install with Bradshaws Butyl Over a 3-Metre Span

Size the sheet before digging

Liner length equals pond length plus twice the maximum depth plus a 0.3 metre overlap on each side. For a 3 metre span pond with a 0.6 metre maximum depth, the calculation is 3 + 1.2 + 0.6, which gives a 4.8 metre liner length. Width follows the same calculation: 2 + 1.2 + 0.6 gives 3.8 metres.

Bradshaws supplies butyl in 4 metre and 6 metre roll widths, so the 3.8 metre width requirement pushes the order to the wider roll and a 4.8 metre cut from it. That leaves 23 square metres of material billed, with the offcut still useful for a later bog filter.

At 0.75mm thickness, butyl weighs about 1.05 kg per square metre. A 4.8 by 4 metre sheet comes close to 20 kg dry, so two people make the handling far easier. Once wet and lying in a half-filled excavation, the sheet behaves like wet carpet, pressing itself into corners under its own mass. That behaviour helps during fitting, provided the liner has been set down with slack rather than pulled taut.

Underlay and the base layer

Flint, builders rubble and the sharp edge of a cut tree root can work through 0.75mm rubber when freeze-thaw movement presses the liner onto the point. Bradshaws sells a 300 gram per square metre non-woven polyester underlay, and that bonded geotextile resists puncture far better than the 100 gram offcuts sold as economy matting. Order the underlay to the same 4.8 by 4 metre footprint as the butyl because it has to climb the pond walls as well as cover the base.

A 5 centimetre screeded layer of soft building sand beneath the underlay gives the base a second layer of protection. Sand will slide off a 30 degree marginal shelf wall, so the geotextile does the protective work on the sides. On heavy clay subsoil, many installers leave out the sand and double the underlay across the base. Two layers of 300 gram polyester over a 6 square metre base footprint cost less than a bag of kiln-dried sand plus the hour spent trying to screed a slope that will not hold its shape.

Cut the shelf and set the rim level

Mark the outline with a half-moon edger, then remove spoil down to a marginal shelf 23 centimetres deep and 30 centimetres wide. Run that shelf around at least two thirds of the perimeter. It gives 1 to 2 litre aquatic baskets of marsh marigold and water forget-me-not their preferred 15 to 25 centimetre submersion.

Below the shelf, batter the walls back to a 20 degree slope off vertical. Steeper faces make the liner bridge the corner and leave a stress fold where the rubber thins under stretch.

The deep zone reaches 0.6 metres. That depth keeps a 200 litre body of water from freezing solid in a UK winter and gives goldfish a refuge beneath the ice. Check the rim with a 2 metre spirit level laid across a straight board, rotating the board through four compass positions. A 2 centimetre fall across a 3 metre span makes the filled waterline read as a tilted ellipse, and edging stone will not disguise it. Correct the high side by removing soil; loose spoil built up on the low side settles later.

Feel for stones through socks

Walk the excavation in socks before the underlay goes down. Remove anything felt underfoot: a flint, a snail of compacted clay or the stub of a severed root. The job takes about 40 minutes of slow checking in a pond this size because the liner will later be pressed hard against every point left in the soil.

Lay the butyl with water doing the shaping

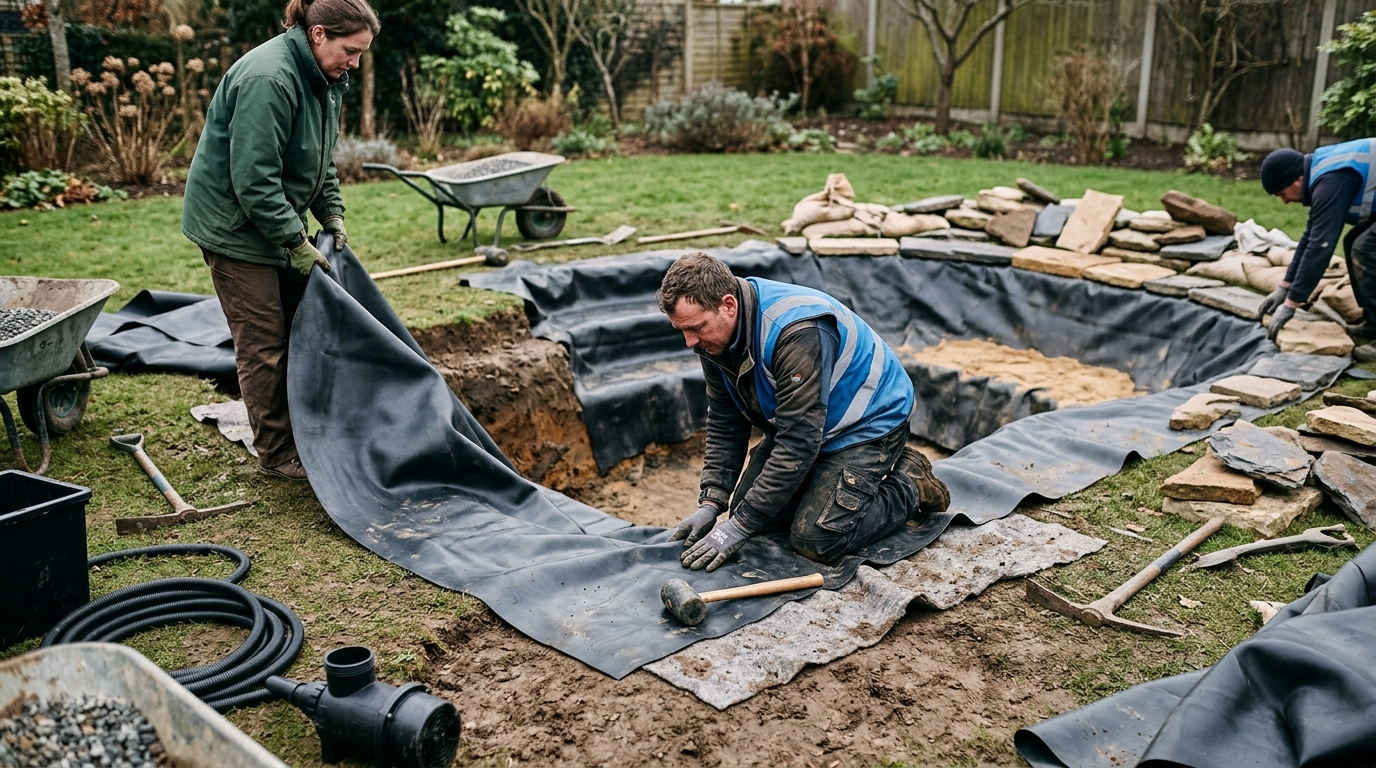

Drape the butyl loosely into the excavation on a warm afternoon when the rubber is supple. Bradshaws butyl handles down to 0 Celsius, although folds form more cleanly above 15 Celsius. A still day in late spring or early autumn suits the material.

Leave slack across the base, the shelf and the side walls. The liner has to settle into the shape of the hole without tension. If it is pulled tight at the start, the weight of the water transfers load to the corner folds.

Run the hose and let the first water into the deep zone. Filling water is the tool used in the puddling-in method: as the level rises, it pushes the rubber into the base contour. Work the surplus material toward the corners by hand while the water is still shallow enough to move the folds.

Aim for a small number of large pleats instead of many small puckers. A 3 metre informal pond usually settles into four corner pleats. Fold each one flat and point them in the same rotational direction so they lie down cleanly.

Stop filling when the water reaches the marginal shelf level. Dress the pleats again at that height, then continue filling. At full level, keep the water 5 centimetres below the lowest rim point. That freeboard helps stop a heavy August downpour from washing silt and lawn debris over the edge in a single storm.

Trim the surplus liner to a 30 centimetre flap all around. A flush cut wicks water out of the pond by capillary action into the surrounding soil, dropping the level 2 to 3 centimetres a week in dry spells. The flap also needs enough width to sit under the edge.

Leave the filled pond for 24 hours before edging. During that wait, the 200 litre mass compresses the underlay and any sand beneath it. Edging stone laid while the liner is still moving can crack its own mortar bed.

Hide and hold the edge flap

Fold the trimmed 30 centimetre flap back over itself and bury it beneath the chosen edge. Bradstone cobble setts bedded on a 4:1 sand-cement mix form a firm mowing edge on the lawn side and hold the flap down with their own weight, about 2.4 kg per sett. On the planted side, turf or gravel can sit directly over the flap so the rubber line does not show at the waterline.

Exposed black liner is the clearest visual sign of an amateur installation, and sunlight degrades it faster than soil cover. Where the pond meets lawn, set the cobble setts 1 centimetre below the mower height so the blade clears them. Where the pond meets a border, a 50 millimetre gravel margin over the buried flap lets marginal plants self-seed into the gap and soften the transition within one growing season.

Volume, materials and early water behaviour

For the 3 by 2 metre pond at 0.6 metres deep, the average depth across the dished profile sits near 0.35 metres. Usable volume is therefore about 3 x 2 x 0.35, or roughly 2,100 litres. That volume drives the pump and filter specification: a turnover of once per hour suits a fish pond, so a pump rated near 2,000 litres per hour with a 9 watt UV clarifier handles green water on a body this size.

A new 2,100 litre pond with no established plant cover can turn pea-green within a fortnight during the first summer. Algae colonise nutrient-rich tap water faster than any UV clarifier clears it at the start. Water clarity by August depends on how quickly oxygenating plants such as hornwort establish against the nitrate load.

The materials list is compact but heavy: 23 square metres of 0.75mm butyl, 19 square metres of 300 gram underlay sized to the liner footprint, a 4:1 bedding mix for the cobble setts, and the setts themselves at roughly 25 per linear metre of edge. The 10 metre perimeter of an informal 3 by 2 pond needs around 250 setts. Butyl has a manufacturer life expectancy past 20 years, compared with PVC liner ratings nearer 10 to 15, so the higher upfront rubber cost spreads across a longer installation life.

A freshly dug pond loses 3 to 5 centimetres of apparent depth in the first month as the walls slump and the underlay compresses. That early movement is why the marginal shelf is cut 2 centimetres deeper than the plant baskets strictly need, leaving a ledge that is already correcting for ground that has not finished settling.
