6 Step Clematis Armandii Wall Wiring with Gripple Tensioners on a 4-Metre Span

Fix the wall points before cutting wire

Begin with the vine eye fixings for the four horizontal runs. On brick or rendered masonry, an M6 driven vine eye seats into a wall plug. On softer blockwork, the screw-pattern vine eye usually gives a better hold because it bites into the fixing more positively.

Gripple gives 5 metres as the maximum unsupported wire run before an intermediate fixing is needed. A 4-metre span sits inside that limit, so each line can run between two terminal points without a centre support. Place the lowest wire 40cm above soil level, then set the other three wires at 40cm intervals, with the top run finishing around 1.6m.

That low first wire matters with Clematis armandii because the plant sends out long leaders early in the season. If the first support starts too high, those leaders trail before they can be tied in, and the lower part of the wall stays thin.

Drill all eight terminal holes before any wire is installed. A 4-metre wall takes the vine eyes at the outer ends of each run, with the wire spanning between them. Keeping the holes aligned at this stage makes the later tensioning easier, because the wire is not being asked to pull a crooked fixing line into shape.

The fixing carries the tension load of the run. For that reason, plug depth and the quality of the wall seat matter more than moving to a heavier wire. A strong wire attached to a shallow plug still leaves the plug as the weak point.

On a cavity wall, use a frame fixing that reaches past the outer leaf; a short plug may only grip render. The upper runs deserve the most care, since they will take the greater canopy load once the plant has bulked up.

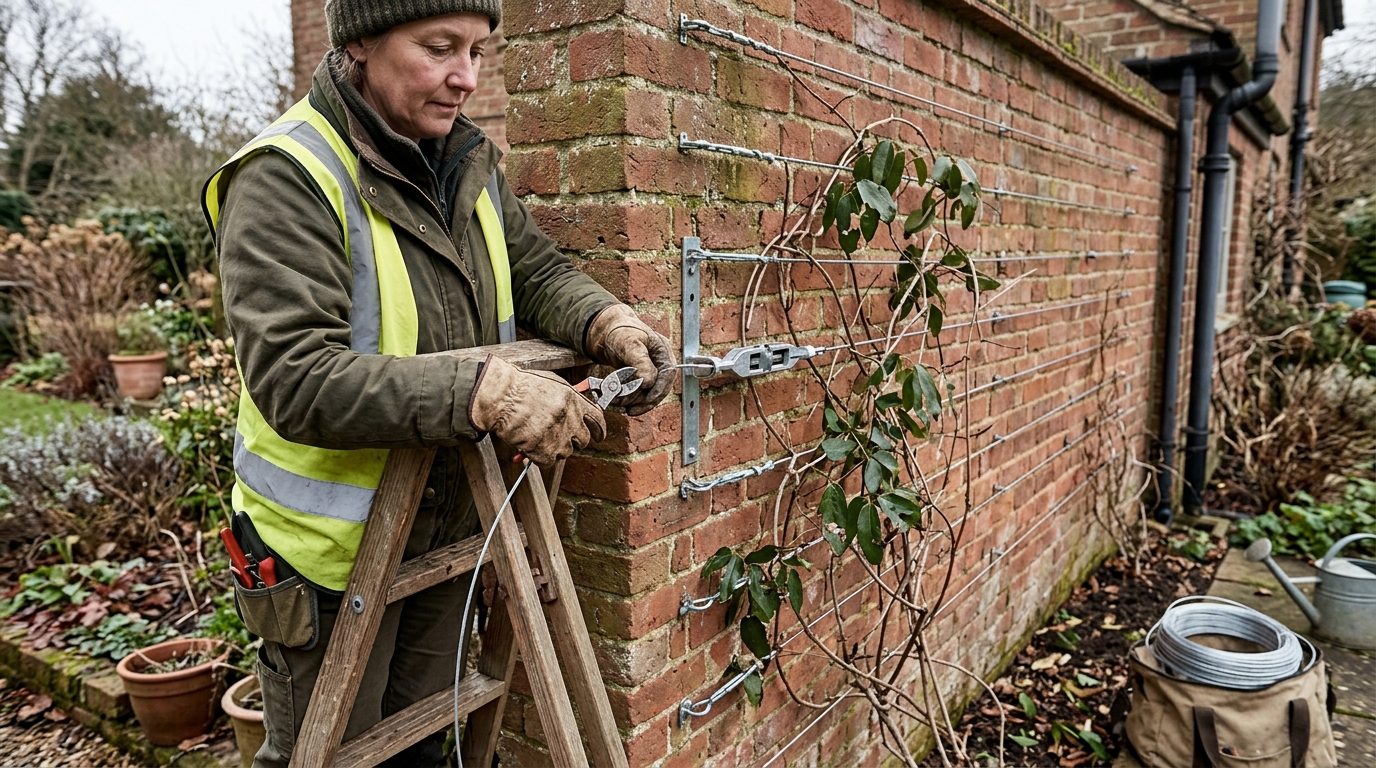

Use the Gripple barrel as the locking point

The Gripple Trellis tensioner is a small ceramic-and-spring barrel made for 2mm wire. The wire feeds through in one direction, and the internal jaws bite when the wire tries to move back; a release key opens the grip if the line has to be slackened or reset. The benefit is a clean adjustable termination without twisting the wire around the eye or relying on a turnbuckle that can seize outdoors after repeated wet winters.

Use the 2mm galvanised wire sold for the same Gripple Trellis kit. Each barrel is rated for that wire size, and a heavier gauge changes how the jaws meet the wire, which defeats the intended grip.

A single run needs one tensioner at the far terminal eye. Thread the wire through the near vine eye, carry it across the full 4 metres, pass it through the far eye, then feed it through the Gripple barrel and pull the spare through by hand.

Hand pulling gets the line close to tight. The supplied tensioning tool then brings it up to working tension. Stop when the wire gives a muted low note under a flick; a sharp high ping suggests the run has been pulled harder than the wall fixings need.

Allow for the weight of armandii by its third spring

Clematis armandii is the heaviest of the commonly grown evergreen clematis. By its third spring, it can carry a dense mat of leathery 12cm leaves through the year, and the woody base stems thicken to about finger diameter. A deciduous climber drops much of its seasonal load in autumn, while armandii keeps its canopy through winter gales.

That weight will not sit evenly across the four wires. Armandii flowers and bulks most heavily at the top, so the upper two runs usually end up carrying more than the lower pair within three seasons. Fixing strength should be planned around the top run, not around an average spread across all four wires.

One common failure is the top corner eye pulling out of soft render under a wet canopy during a February storm. Stepping the top fixings up to an M8 driven eye gives more hold. Another option is to double the upper terminals, using two eyes at each end of the top runs so the load is shared.

Training reduces the strain as much as hardware selection does. Tie early leaders horizontally along the lowest wire with soft twine, spreading growth left and right so it fills the 4-metre span. If the plant is allowed to race straight upward, it forms a narrow column with bare wall on either side.

Armandii does not self-cling like ivy. The wires only become useful when the growth is laid onto them by hand, especially in the first two years. Once the stems have hardened in a good position, the plant is easier to keep flat to the wall.

Prune immediately after flowering in spring, never in autumn. Armandii flowers on the previous year’s wood, so autumn pruning removes the buds that would have opened the following spring.

A light trim after flowering, taking growth back to the wire line, keeps the canopy away from gutters and reduces the top-heavy mass on the upper fixings. Left unpruned on a 4-metre wall, armandii can rise well above the top wire within four years, and that unsupported overhang adds leverage to the whole support system.

Get the base conditions right before the plant fills the wire

Clematis armandii dislikes waterlogged roots, which is a particular risk against a wall. Rain shadow can leave one part of the planting strip dry, while runoff can make another pocket sodden within the same metre of ground. Set the crown 5cm to 8cm below the surrounding soil and backfill with a free-draining mix.

A rainwater diverter on a nearby downpipe can feed a water butt and stop downpours from dumping too much water into the border. The aim is controlled moisture at the root zone, because a wall-trained climber sits in one of the driest strips of a garden for much of the year.

Plant 30cm to 45cm out from the masonry, not tight against it. The early stems can then be leaned back toward the wires. With the first wire at 40cm, the stems reach it at a shallow angle and are easier to tie without snapping.

Check the top run as a tension example

Take the top wire on the span: 4.0m of 2mm galvanised wire between two M8 driven vine eyes, with one Gripple T-clip at the right-hand terminal. Galvanised steel wire at 2mm has a working load far above the load imposed by a clematis canopy, so the wire itself is rarely the limiting part. The wall fixings are the part to watch.

Assume the mature canopy on the upper third of the wall hangs roughly 6kg to 9kg of wet foliage across that single top wire in winter. That load acts down and outward. The downward part creates sag between the fixings, while the outward part increases the pull on the terminal eyes.

More tension reduces visible sag, but it also increases the load held at the terminals. At working tension, a 4-metre 2mm run should show a small mid-span droop once the canopy has weight on it. A wire pulled bar-tight leaves less movement in the span, so more of the force is carried directly by the eye threads and the plug seat, where pull-out begins.

A practical setting is to tension each run until the 4-metre 2mm wire deflects about 10mm to 20mm at mid-span under light hand pressure before the plant matures. That leaves room for canopy weight to be taken partly by wire sag and partly by fixing tension. Re-tension once in the second spring, after the first full season of growth has settled the stems onto the wires.

Protect soft shoots while the framework establishes

New armandii shoots in their first April can be soft enough for slugs to strip overnight. The wire system cannot protect a stem before the plant has hardened it.

Nemaslug, the Phasmarhabditis hermaphrodita nematode product, waters into soil above 5C and gives roughly six weeks of control per application as the nematodes seek out slugs below the surface. Apply it to the planting strip before the first flush; waiting until stripped shoots are visible misses the vulnerable window.

Timing is the main value of nematodes on a young wall-trained armandii. They need moist, warming soil, so a March or April application matches the soft-shoot period. A single dose across the border strip protects the leaders during the weeks when they are most vulnerable and least replaceable, because losing a leader on a one-year plant can cost a season of wall coverage.

Reapply through the growing season as the label interval allows, and keep the soil damp for a day after watering it in so the nematodes can move. That leaves an unanswered pressure point: the leaders needing protection are also the same stems being asked to claim the first wire before they harden.
